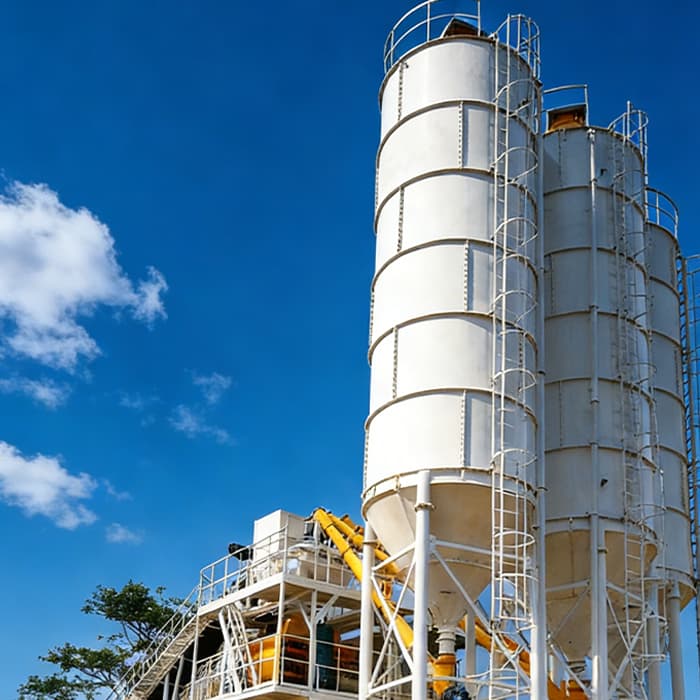

Cement Silos

DKTEC offers a wide range of storage silos for powder products like, Lime, Fly Ash, Microsilica, Bentonite and others. The capacities vary from 50 to 2000 tons (calculating at 1,25t/m³).

Highlights

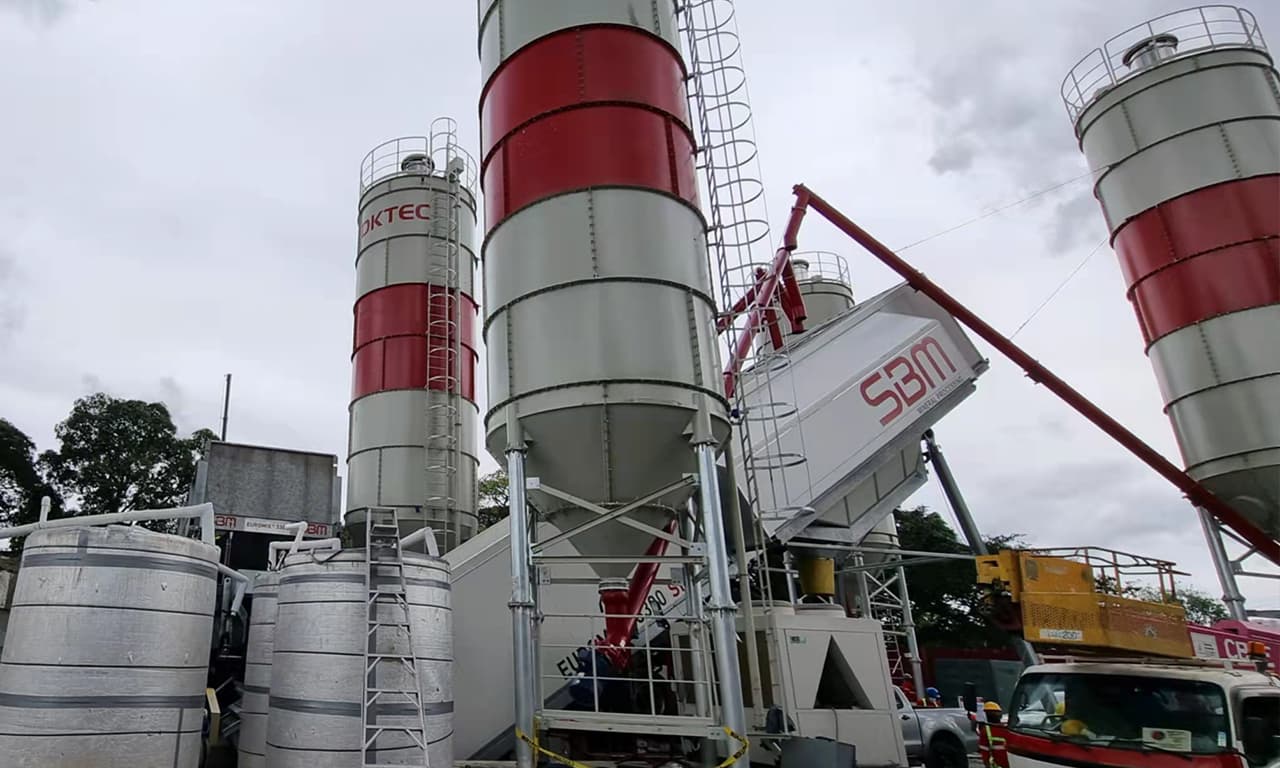

1. BOLTED TYPE SILOS

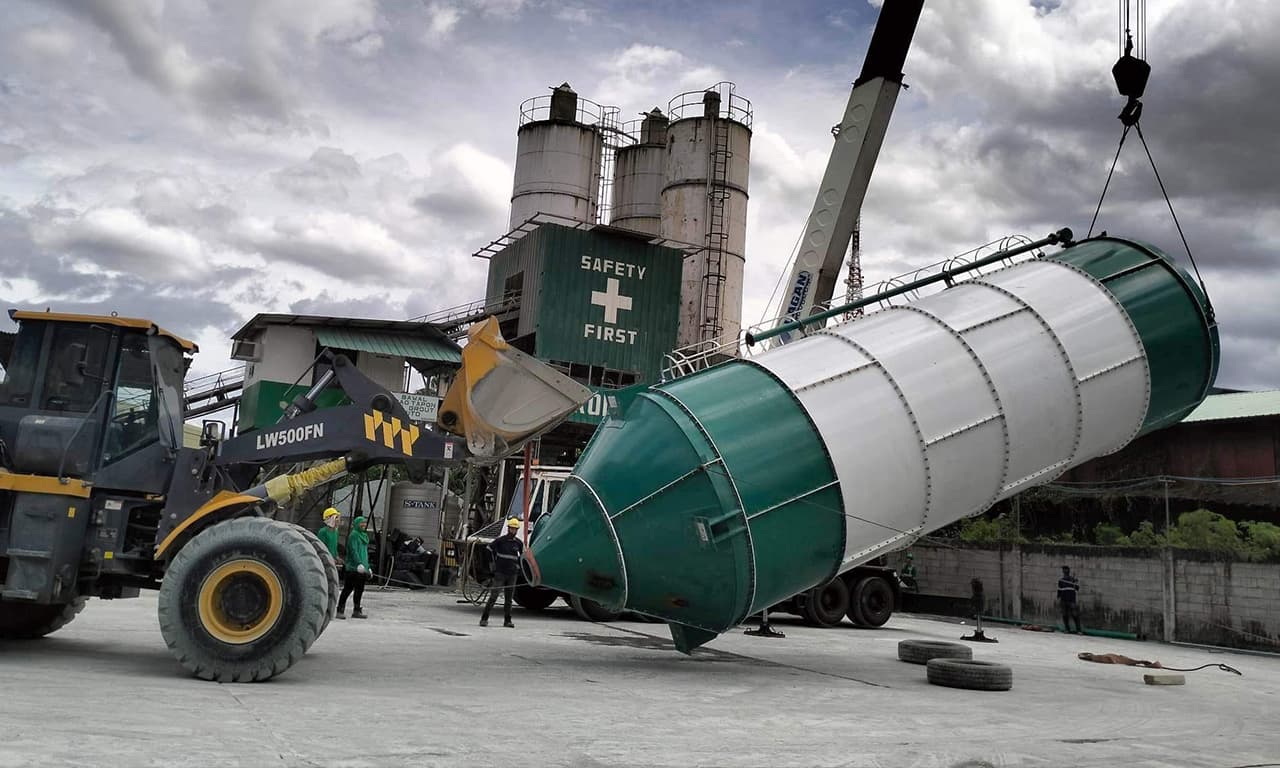

Bolted silos feature a modular design with bolted connections, offering significant advantages over traditional welded silos, including easy transportation, flexible installation, lower costs, convenient maintenance, and easy relocation. The silo can be divided into standardized components, making full use of container space and significantly reducing transportation costs, especially for international shipping and long-distance transportation. Once delivered to the project site, the components can be quickly assembled, reducing the need for large lifting equipment. The modular structure also makes maintenance and component replacement easier, while the silo capacity can be customized according to project requirements. In addition, the silo can be dismantled, transported, and reassembled when the project needs to be relocated. Therefore, bolted silos are particularly suitable for export projects, mobile concrete batching plants, temporary construction projects, and applications requiring relocation.

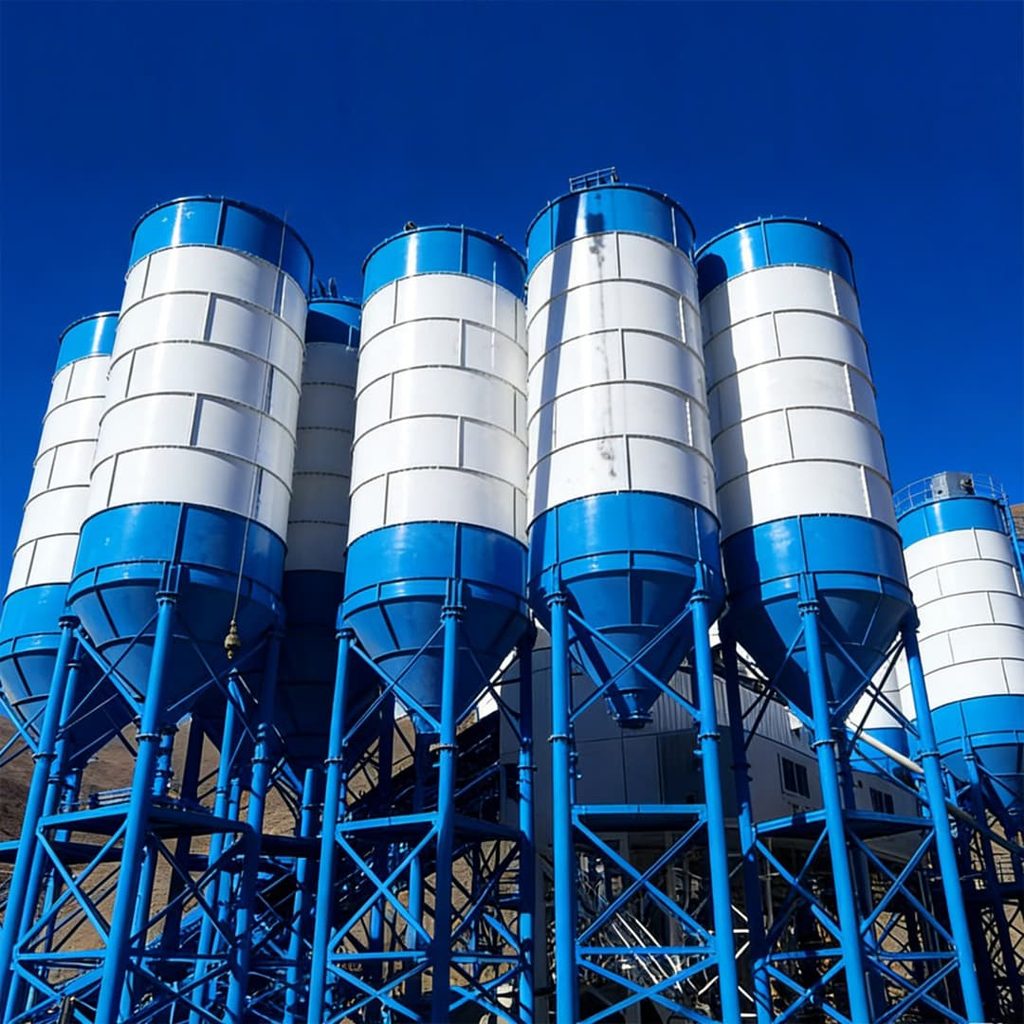

2. BOLTED SILO CAPACITIES

50-80-100-120-150-200-250-300-800-1000-1500-2000 tons

SCREW CONVEYORS

In addition to our own DKTEC products, we are also proud to supply silo accessories from renowned brands such as SICOMA and WAM. Our screw conveyors are available in a range of sizes and configurations, providing flexible solutions to meet the needs of different applications and projects.

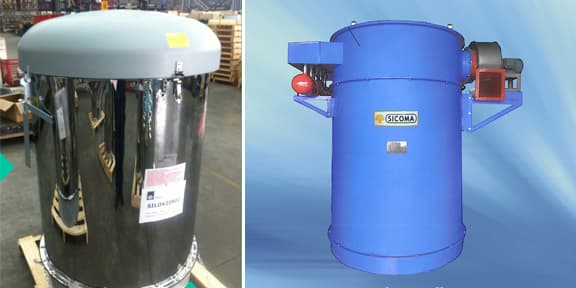

SILO FILTER

DKTEC supplies dust collectors from renowned brands such as SICOMA and WAM, providing reliable dust filtration solutions for cement silos and concrete batching plants. Designed for efficient dust removal and stable operation, these dust collectors help maintain a cleaner working environment, reduce dust emissions, and protect plant equipment. With compact designs, reliable filtration performance, and easy maintenance, they are suitable for a wide range of silo and batching plant applications.

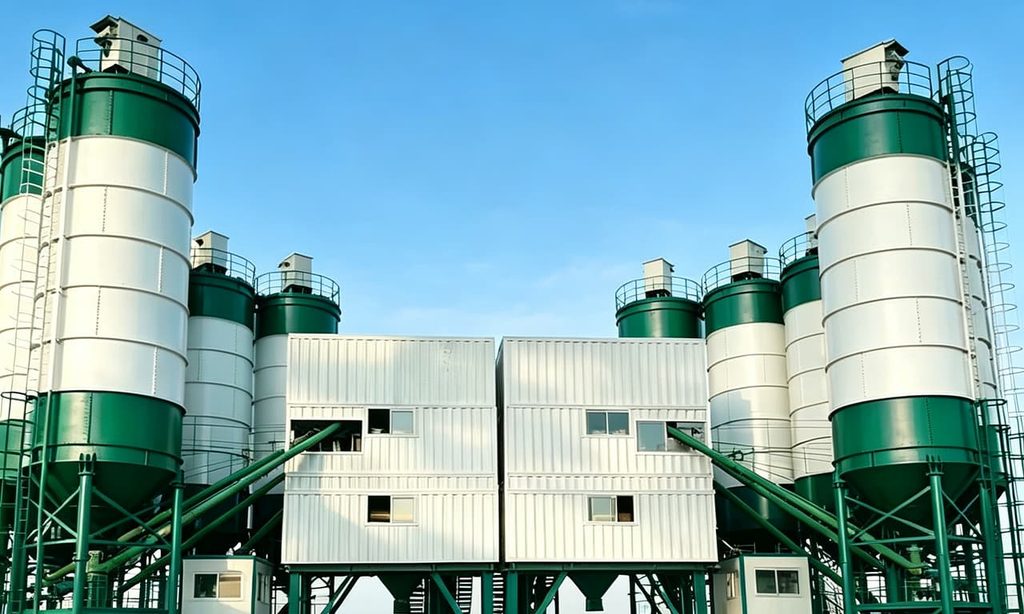

STANDARD SILO PACK

Standard silo equipment pack consists of the following:

A manual lever controlled butterfly valve on the bottom of the silo cuts the material flow for screw conveyor servicing.

Mix/Max level indicators send information to the batch computer when the amount is low or on its maximum.

Safety valve prevents silo from overpressure. The valve opens when threshold pressure limit is reached.

Aeration nozzles and airpipes ensure continuous flow of the material to the discharge area.

Cement Silos Downloadable Files

Cement Silos Gallery

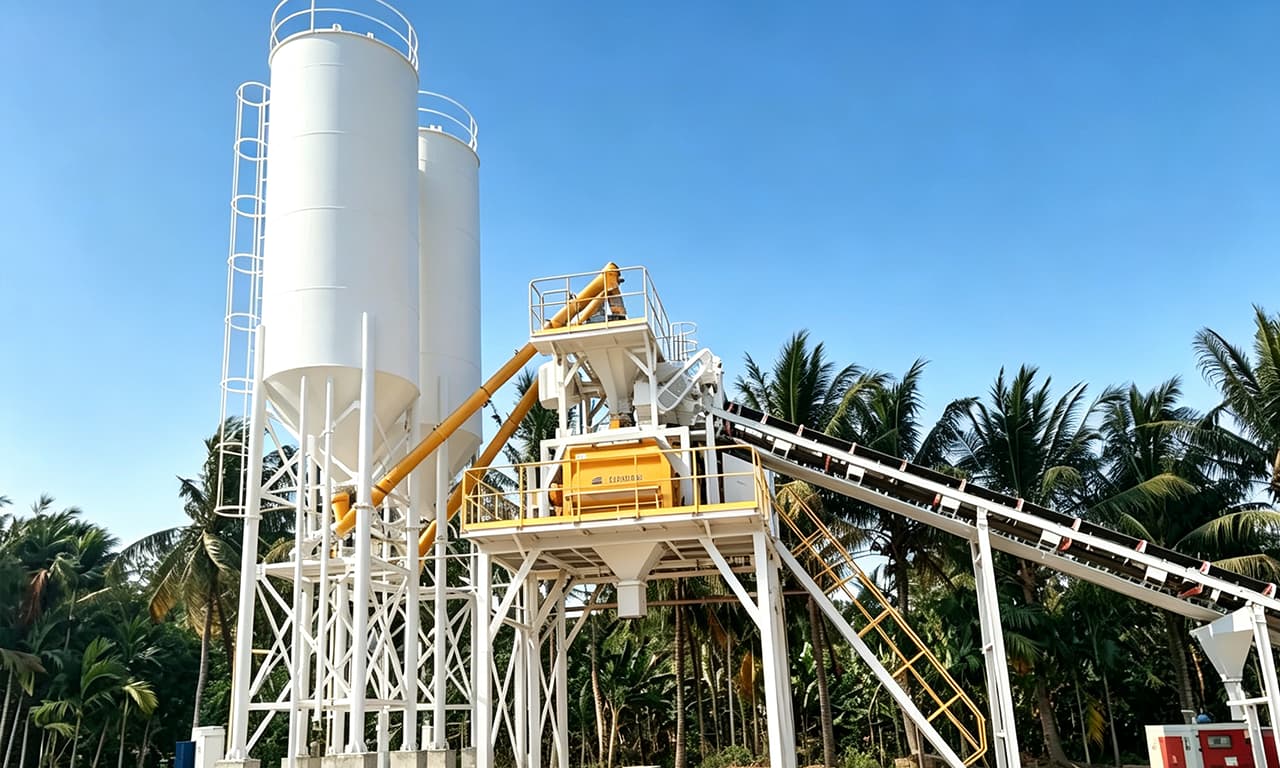

cement-silos-01,13480
