Concrete Recycling System
Energy savings thanks to reduced running time
Low consumption of wash water
Low maintenance, easy and quick
Non-stick Sint engineering polymer components resistant to abrasion
Perfect aggregate washing
High efficiency in solid-liquid separation thanks to large water volume in the screw

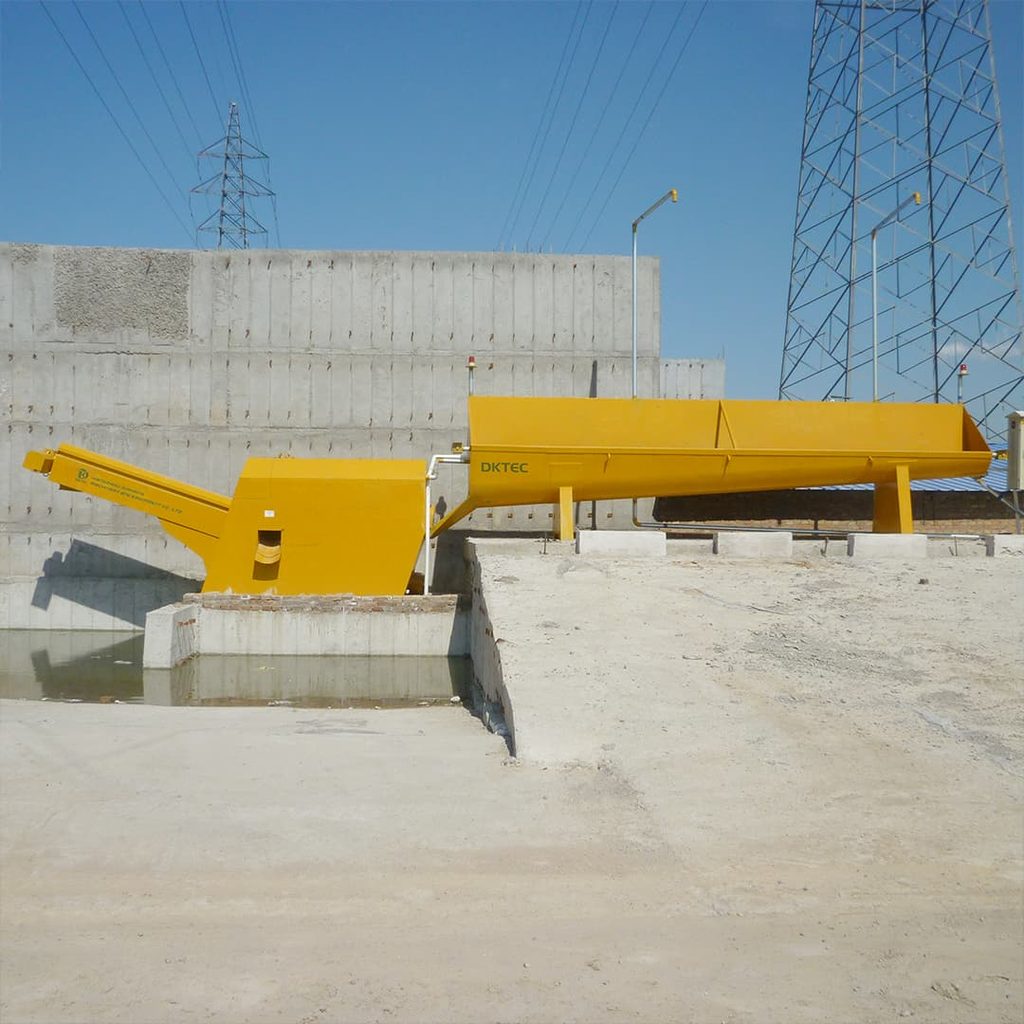

Recycling System – How Does it Work
DKTEC Concrete Recycling Machine is designed to efficiently recover residual concrete from mixer trucks and batching plants. It separates aggregates from cement slurry, allowing reusable materials to be recovered while reducing concrete waste, disposal costs, and environmental impact. With a robust structure, reliable performance, and easy operation and maintenance, it provides an efficient and environmentally friendly solution for ready-mix concrete plants, construction sites, and precast concrete production.
Concrete Recycling System Technical Specifications
| Item | DK-FG10 | DK-FG15 |
|---|---|---|
| Model | DK-FG10 | DK-FG15 |
| Dia. of rotary screen (mm) | 1000 | 1250 |
| Dia. of sand screw (mm) | 480 | 480 |
| Screening ability (m²/h) | ≤12 | ≤15 |
| Size of split stone (mm) | >Φ5 | >Φ5 |
| Sand size (mm) | <Φ5 | <Φ5 |
| Stone separator power (kw) | 4 | 5.5 |
| Sand separator power (kw) | 4 | 4 |
| Overall Size (L×W×H) (mm) | 6260×1970×2480 | 6900×2160×2730 |
| Total weight (t) | ≥5 | ≥6 |
| Qty. of mixer trucks | <30 | <45 |
| Qty. of washing parking | 1–2 | 1–2 |
| Electric control system | PLC Auto control | PLC Auto control |
Concrete Recycling System Downloadable Files

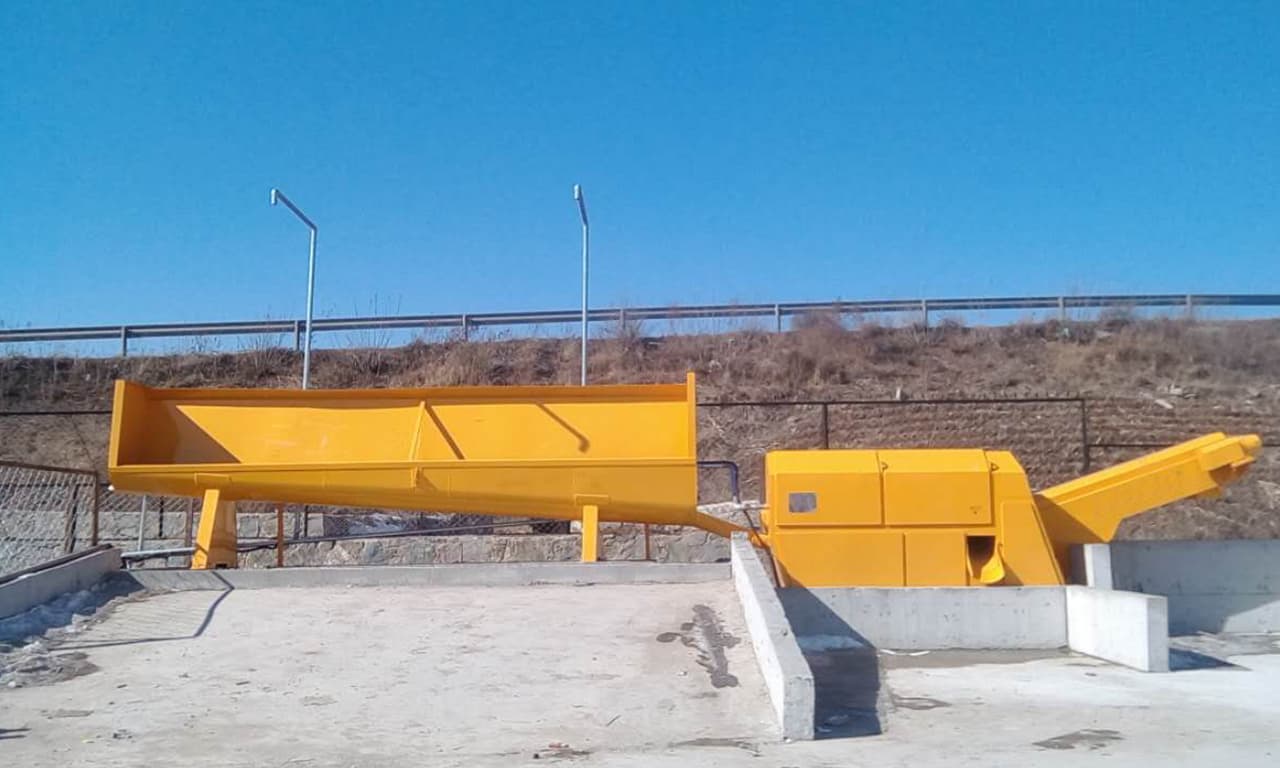

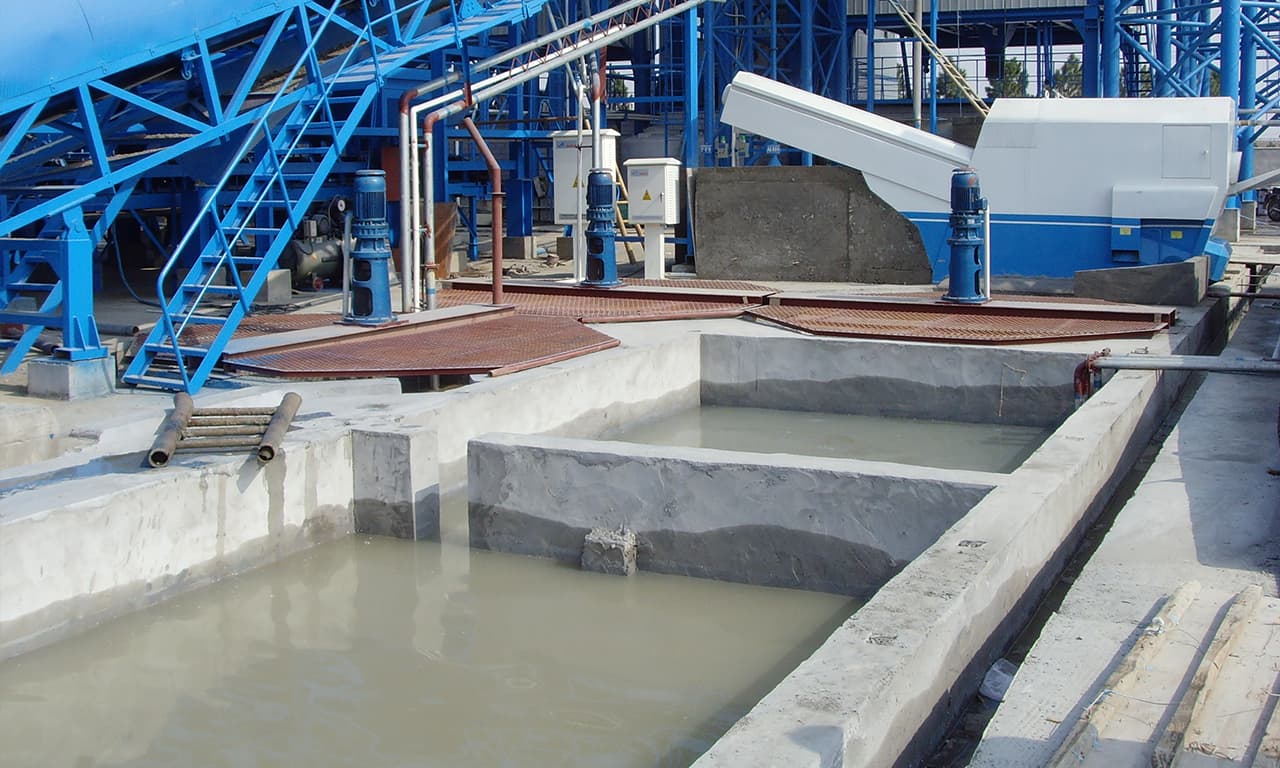

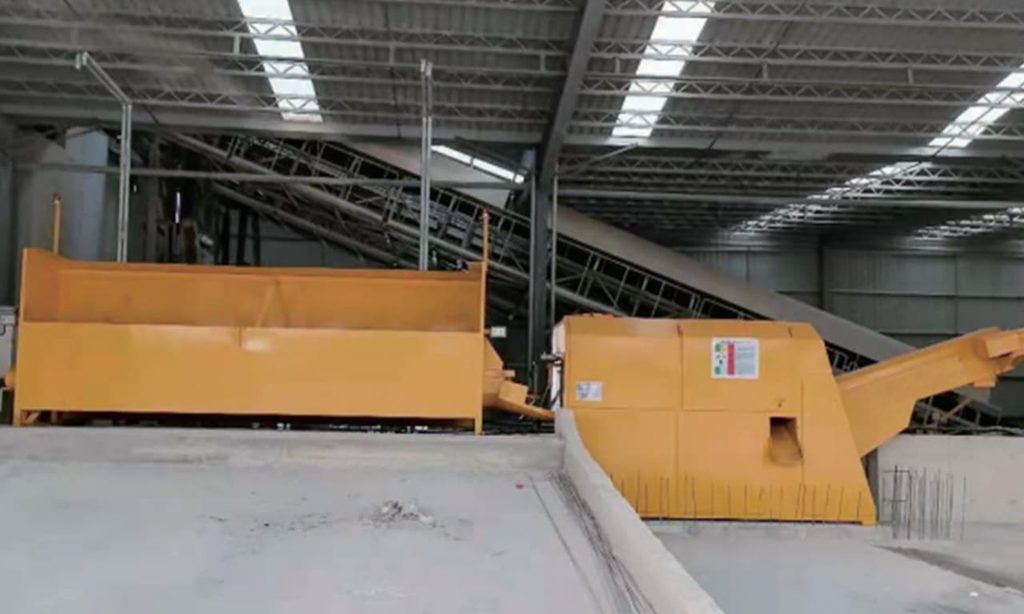

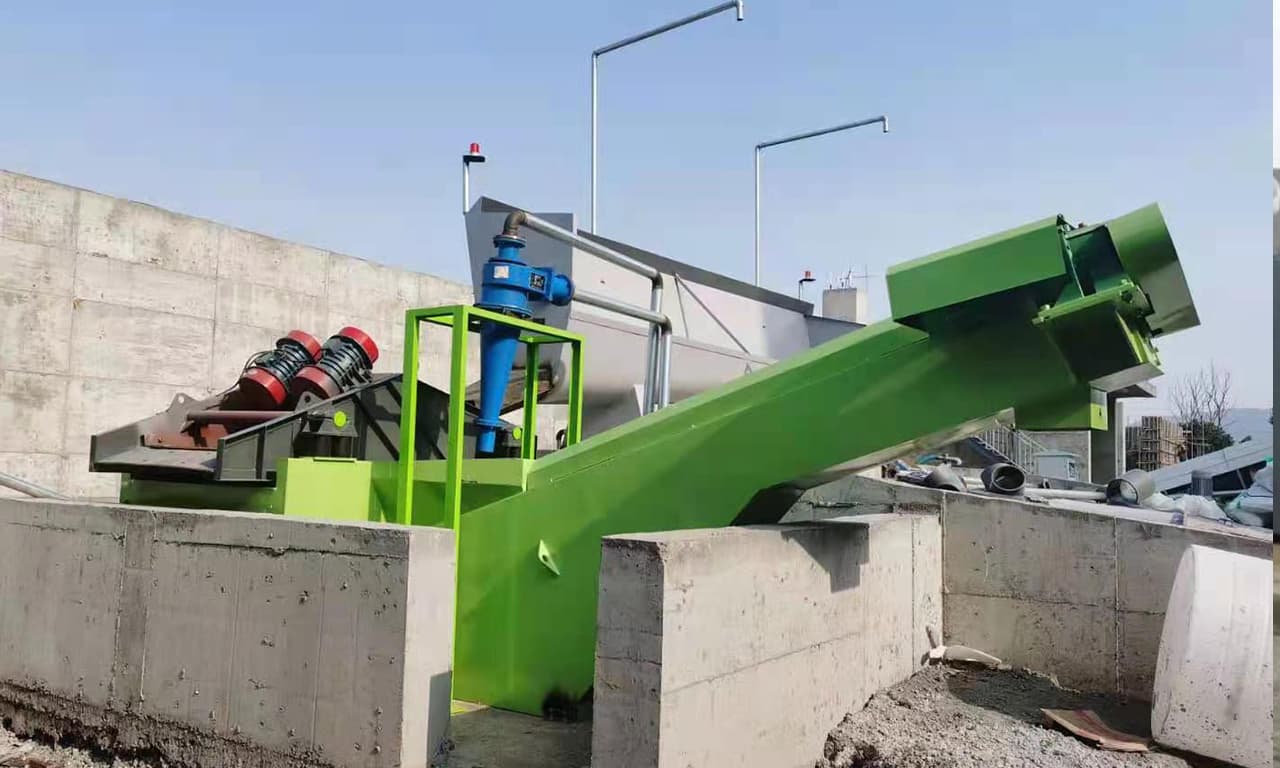

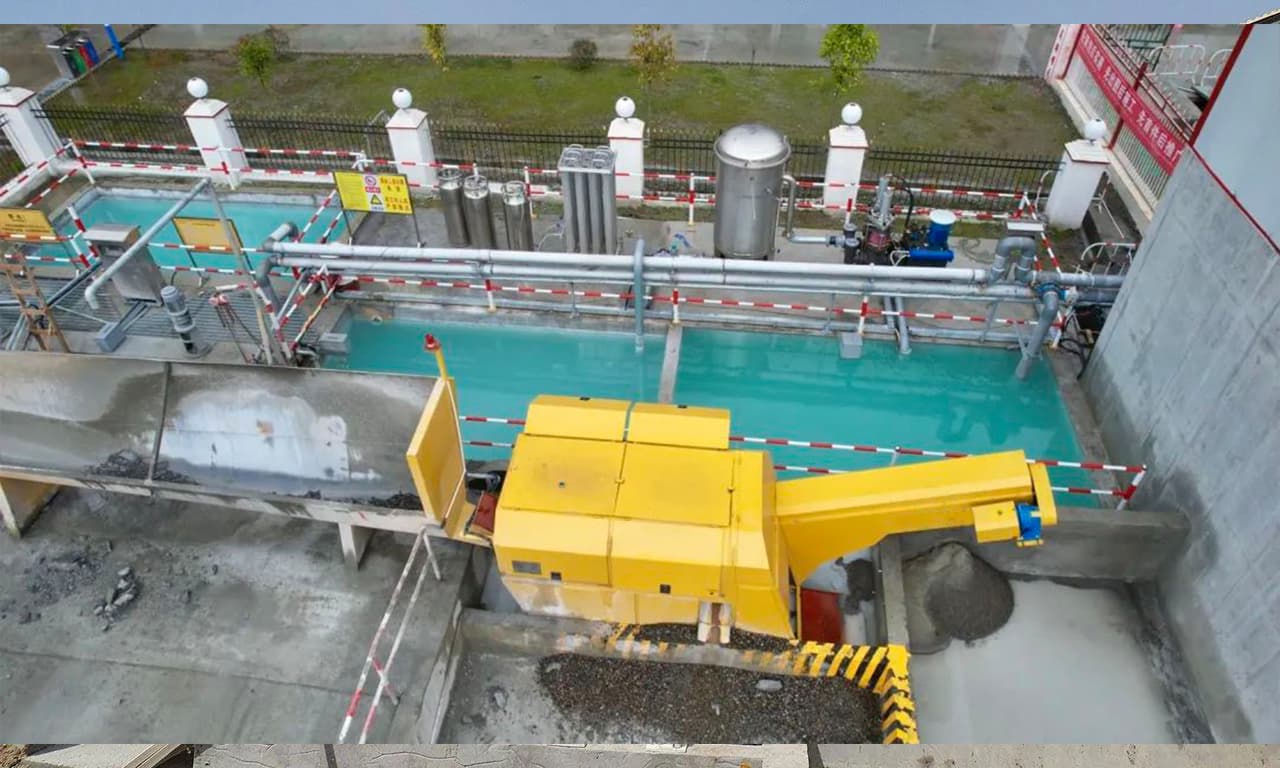

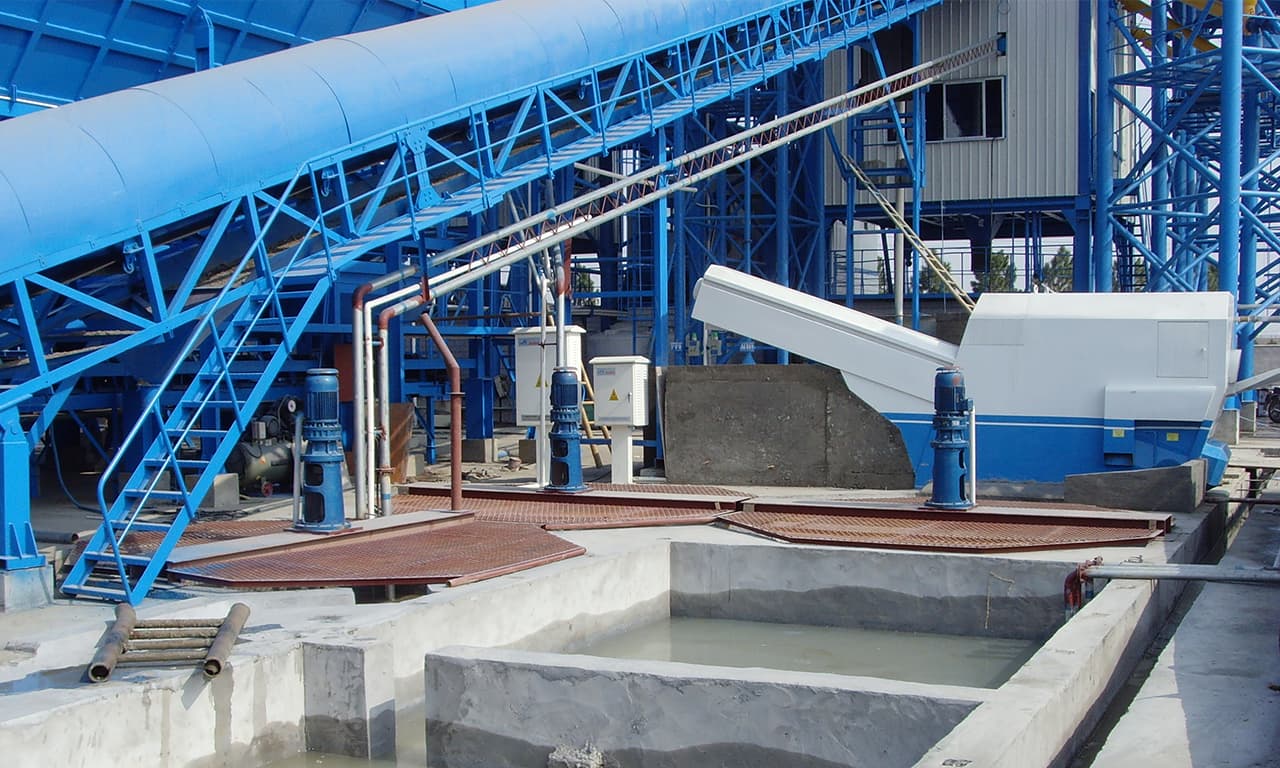

Concrete Recycling System Gallery
