HZS120 Commercial Concrete Batching Plant
The DKTEC HZS120 Commercial Concrete Batching Plant is a high-efficiency concrete production solution designed for medium and large-scale ready-mix concrete producers. With a 120 m³/h production capacity, it combines advanced batching technology, intelligent automation, and robust structural design to deliver consistent concrete quality and reliable performance. Equipped with a SICOMA/BHS Twin Shaft Mixer, precision weighing systems, and DKTEC Intelligent Control System, the HZS120 provides an efficient, stable, and cost-effective solution for commercial concrete production, infrastructure projects, bridges, and highways.
Briefly HZS120
- The DKTEC HZS120 Concrete Batching Plant is engineered for customers who require efficient and stable concrete production with high productivity and precise material control. With a theoretical capacity of 120 m³/h, it is suitable for highway construction, bridge projects, commercial developments, precast concrete factories, and other demanding applications.
- The advanced steel silo aggregate batching system uses four independent 14 m³ storage silos, combined with a 3.5 m³ cumulative weighing hopper and high-accuracy load cells, ensuring continuous material supply and precise aggregate measurement. The optimized belt conveyor system provides smooth transportation and improves overall production efficiency.
- Featuring a 2.0 m³ SICOMA Twin Shaft Mixer, intelligent automation, dust collection system, and modular steel structure, the HZS120 provides a complete concrete production solution with high reliability, easy maintenance, and excellent operating efficiency.
HZS120 Technical Specifications
Plant Capacity
| Item | Specification |
|---|---|
| Mixer Type | SICOMA Twin-Shaft Mixer |
| Mixer Motor Power | 2×37 kW |
| Mixer Capacity | 2.0 m³ / cycle (Compacted Concrete) |
Feeding System
| Item | Specification |
|---|---|
| Storage Silo | 4×16 m³ |
| Aggregate Feeding | Belt Conveyor |
Weighing Units
| Item | Specification |
|---|---|
| Aggregate Weighing | 4 × 2.0 m³Cumulative metering / Individual metering |
| Other Materials | High-Precision Weighing System |
1. HZS120 : HIGH-PERFORMANCE MIXING TECHNOLOGY
Adopting the DKTEC Automation System helps realize smarter‑mode production and cut down operating costs. Equipped with a user‑friendly interface and full‑set production‑management functions for operators, this system features automatic production control, real‑time production‑data monitoring, recipe management, a production‑record and archive system, as well as less dependence on manual operations. In this way, the intelligent platform boosts production efficiency and greatly lowers mistakes caused by human factors.
2. MODULAR DESIGN FOR FAST INSTALLATION
The HZS120 adopts a modular structural design, with major components prefabricated in the factory to ensure high manufacturing consistency and reliable quality. This design significantly simplifies on-site installation, reduces construction workload, and enables easier transportation and assembly. Compared with traditional batching plants, the modular structure effectively shortens project preparation time, lowers installation costs, and allows customers to start concrete production faster.
3. MODULAR DESIGN FOR FAST INSTALLATION
The HZS120 adopts a modular structural design, with major components prefabricated in the factory to ensure consistent quality and efficient assembly. This advanced design enables faster on-site installation, reduces construction workload, and simplifies transportation and assembly. Compared with traditional batching plants, the modular structure significantly shortens project preparation time, reduces installation costs, and allows customers to put the plant into operation more quickly.
4. ADVANCED MATERIAL FLOW MANAGEMENT
The HZS120 is equipped with an optimized aggregate conveying system designed to improve production efficiency and ensure stable material supply. Featuring high-capacity belt conveyors, automatic material flow control, reduced material accumulation, and faster charging and discharging processes, the system enables smooth aggregate transportation and supports continuous, reliable concrete production.
DKTEC Commercial Concrete Batching Plant Download Catalogue

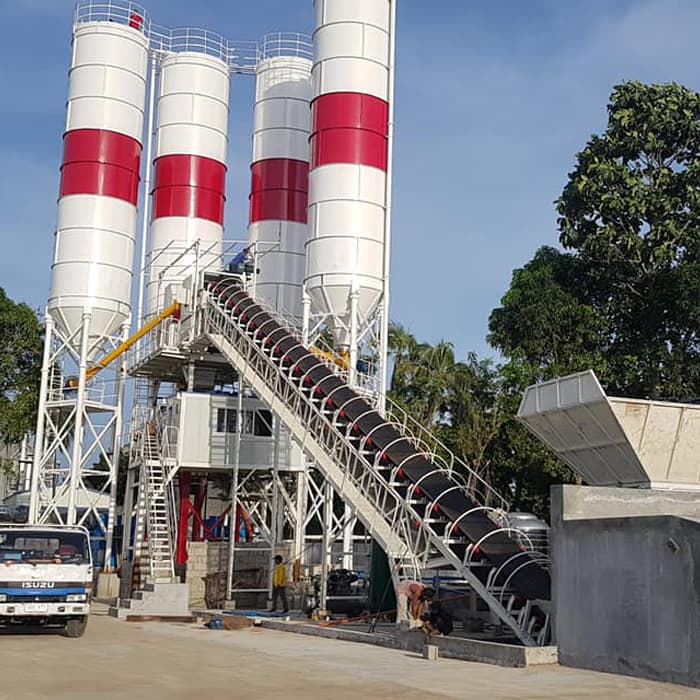

HZS120 Commercial Concrete Batching Plant Gallery
