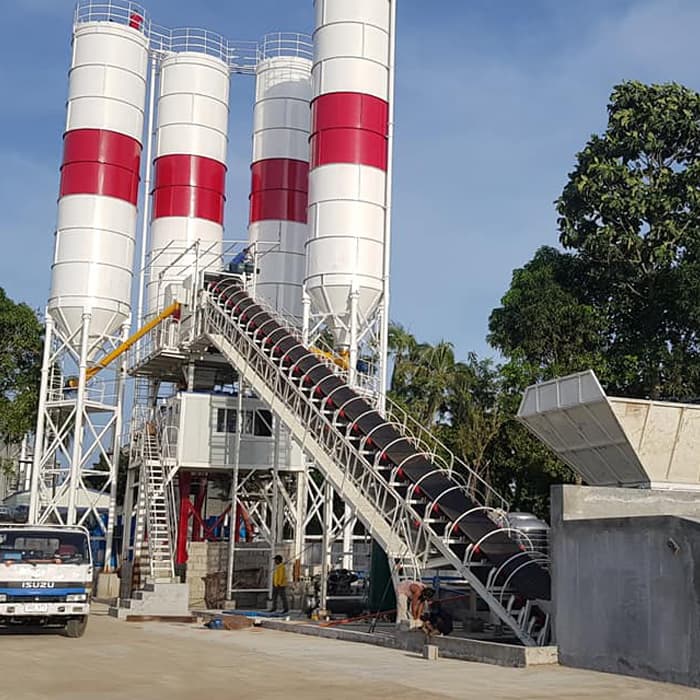

HZS120G Engineering Concrete Batching Plant
The DKTEC HZS120G Concrete Batching Plant is a high-efficiency concrete production solution designed to deliver 120 m³/h of continuous and reliable output for medium and large-scale construction projects. Equipped with a 2.0 m³ SICOMA Twin Shaft Mixer, advanced steel silo batching system, precision weighing technology, and DKTEC Intelligent Control System, it ensures accurate batching, excellent concrete quality, and stable operation. The HZS120G is ideal for infrastructure construction, commercial buildings, precast production, roads, bridges, and municipal projects.
Briefly HZS120G
- The DKTEC HZS120G Concrete Batching Plant is engineered for customers who require efficient and stable concrete production with high productivity and precise material control. With a theoretical capacity of 120 m³/h, it is suitable for highway construction, bridge projects, commercial developments, precast concrete factories, and other demanding applications.
- The advanced steel silo aggregate batching system uses four independent 14 m³ storage silos, combined with a 3.5 m³ cumulative weighing hopper and high-accuracy load cells, ensuring continuous material supply and precise aggregate measurement. The optimized belt conveyor system provides smooth transportation and improves overall production efficiency.
- Featuring a 2.0 m³ SICOMA Twin Shaft Mixer, intelligent automation, dust collection system, and modular steel structure, the HZS120G provides a complete concrete production solution with high reliability, easy maintenance, and excellent operating efficiency.
HZS120G Technical Specifications
Plant Capacity
| Item | Specification |
|---|---|
| Compacted Concrete Capacity | 120 m³/hour |
Concrete Mixer
| Item | Specification |
|---|---|
| Mixer Type | SICOMA Twin-Shaft Mixer |
| Mixer Motor Power | 2×37 kW |
| Mixer Capacity | 2.0 m³ / cycle (Compacted Concrete) |
Feeding System
| Item | Specification |
|---|---|
| Aggregate Bin | 4x 14 m³ / Steel Silo Type |
| Aggregate Feeding | Horizontal + Inclined Belt Conveyors |
Weighing Units
| Item | Specification |
|---|---|
| Aggregate Weighing | 3.5 m³ Cumulative metering / Independent metering |
| Other Materials | High-Precision Weighing System |
Highlights
1. HZS120G : SICOMA TWIN SHAFT MIXER FOR SUPERIOR CONCRETE QUALITY
The HZS120G is equipped with a 2.0 m³ SICOMA Twin Shaft Concrete Mixer, featuring powerful dual motors, reliable reducers, hydraulic discharge system, and automatic lubrication.
2. HIGH-EFFICIENCY STEEL SILO BATCHING SYSTEM
The HZS120G adopts a professional steel silo aggregate batching system with four independent 14 m³ storage silos.
3. INTELLIGENT DKTEC AUTOMATION SYSTEM
The DKTEC Intelligent Control System provides complete automatic management of the batching process.
4. ROBUST STRUCTURE FOR LONG-TERM OPERATION
Designed for industrial applications, the HZS120G features a heavy-duty steel structure, professional maintenance platforms, dust collection system, and safety protection devices.
The optimized design ensures:
Easy maintenance
Safe operation
Reduced downtime
Reliable performance in harsh environments
