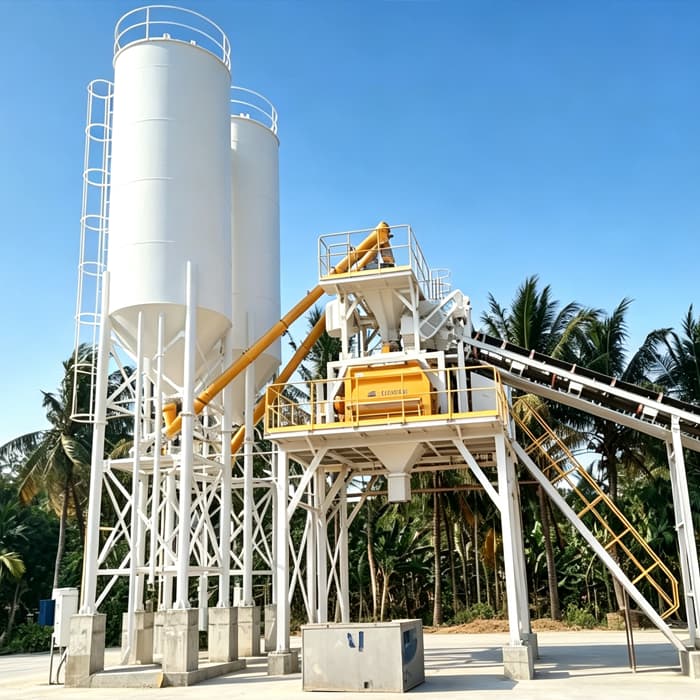

HZS90G Engineering Concrete Batching Plant
The DKTEC HZS90G Concrete Batching Plant is a high-efficiency concrete production solution designed to deliver 90 m³/h of stable output for medium-scale construction projects. Equipped with a 1.5 m³ SICOMA Twin Shaft Mixer, precision weighing system, steel silo aggregate batching system, and DKTEC Intelligent Control System, it provides accurate batching, consistent concrete quality, and reliable performance for highways, bridges, commercial buildings, and infrastructure projects.
Briefly HZS90G
The DKTEC HZS90G Concrete Batching Plant is designed for customers who require a balance between production capacity, investment efficiency, and operational reliability. With a theoretical productivity of 90 m³/h, it provides stable concrete production for medium and large construction projects.
The advanced steel silo aggregate batching system includes four independent 10 m³ storage silos, a 3.5 m³ cumulative weighing hopper, and high-precision weighing components to ensure continuous material supply and accurate batching. The optimized belt conveyor system improves material transportation efficiency and reduces production interruptions.
Featuring a 1.5 m³ SICOMA Twin Shaft Mixer, intelligent control technology, dust collection system, and durable steel structure, the HZS90G delivers consistent performance, easy maintenance, and excellent cost efficiency for modern concrete production requirements.
HZS90G Technical Specifications
Plant Capacity
| Item | Specification |
|---|---|
| Compacted Concrete Capacity | 90 m³/hour |
Concrete Mixer
| Item | Specification |
|---|---|
| Mixer Type | SICOMA Twin-Shaft Mixer |
| Mixer Motor Power | 2×30 kW |
| Mixer Capacity | 1.5 m³ / cycle (Compacted Concrete) |
Feeding System
| Item | Specification |
|---|---|
| Aggregate Bin | 4x 10 m³ / Steel Silo Type |
| Aggregate Feeding | Horizontal + Inclined Belt Conveyors |
Weighing Units
| Item | Specification |
|---|---|
| Aggregate Weighing | 3.5 m³ Cumulative metering / Independent metering |
| Other Materials | High-Precision Weighing System |
Highlights
1. HZS90G : SICOMA TWIN SHAFT MIXER FOR CONSISTENT CONCRETE QUALITY
The HZS90G is equipped with a 1.5 m³ SICOMA Twin Shaft Concrete Mixer, featuring powerful dual motors, reliable reducers, hydraulic discharge system, and automatic lubrication.
2. OPTIMIZED STEEL SILO AGGREGATE BATCHING SYSTEM
The HZS90G adopts an efficient steel silo batching system with four independent 10 m³ aggregate storage silos.
3. INTELLIGENT DKTEC AUTOMATION SYSTEM
The DKTEC Intelligent Control System provides complete automation management for the batching process.
