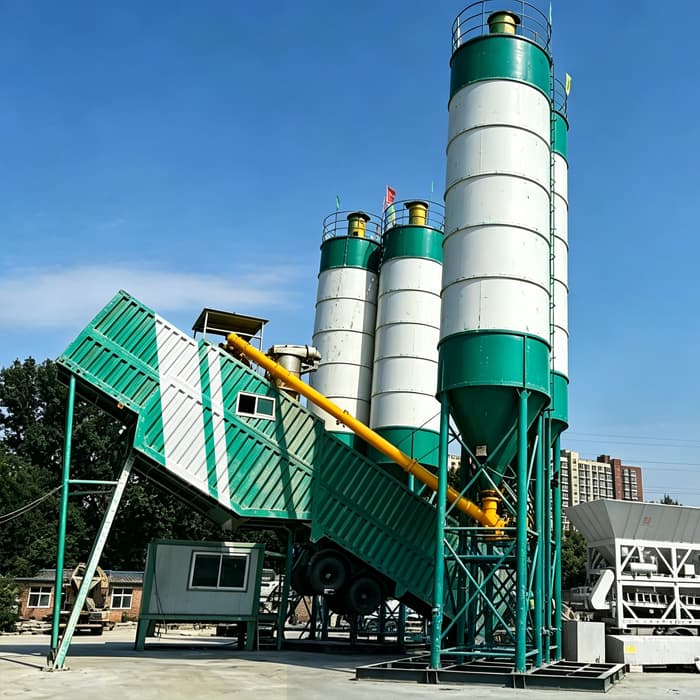

HZS120Y Mobile Concrete Batching Plant
- The DKTEC HZS120Y Mobile Concrete Batching Plant is designed to deliver 120 m³/h of reliable concrete production while offering outstanding mobility for projects that require frequent relocation. Combining a compact footprint with robust performance, it is an ideal solution for road construction, bridge projects, municipal engineering, mining, and remote job sites.
- Its compact design ensures it fits in tight locations, while the plant’s easy and fast installation process minimizes downtime, allowing for quick commissioning. The HZS120Y offers a combination of high productivity and flexibility, making it the perfect choice for contractors who need efficient, mobile concrete production without compromising on performance.
Briefly HZS120Y
- The HZS120Y Mobile Concrete Batching Plant is an ideal solution for construction projects that require frequent relocation or are short-term in nature. With its 2.0 m³ capacity twin-shaft mixer, the plant ensures uninterrupted production while providing excellent performance, low operating, and maintenance costs.
- Designed with practicality in mind, all units of the HZS120Y Mobile Concrete Batching Plant are mounted on a mobile chassis with axles and wheels, making it easy to transport with a single standard truck tractor. Its 3×15 m³ aggregate bunker ensures efficient material storage, and it can be fed via an aggregate loading ramp or Aggregate Pre-Feeding Systems for added flexibility.
- The HZS120Y is designed to be installed quickly and requires minimal space, making it an efficient solution for projects with limited site preparation. It can be installed on zero ground, saving both time and costs, while offering significant advantages in flexibility and operational efficiency.
HZS120Y Technical Specifications
Plant Capacity
| Item | Specification |
|---|---|
| Compacted Concrete Capacity | 120 m³/hour |
Concrete Mixer
| Item | Specification |
|---|---|
| Mixer Type | Twin-Shaft Mixer |
| Mixer Motor Power | 2×37 kW |
| Mixer Capacity | 2.0 m³ / cycle (Compacted Concrete) |
Feeding System
| Item | Specification |
|---|---|
| Aggregate Bin | 3x 15 m³ |
| Aggregate Feeding | Aggregate Feeding Ramp or Pre-feeding System |
Weighing Units
| Item | Specification |
|---|---|
| Weighing System | Precision Electronic Weighing System |
Highlights
1. HZS120Y : UNMATCHED POWER FOR EXCEPTIONAL PERFORMANCE
Achieving maximum homogeneity and workability in the shortest time is essential for boosting your profits. The 2.0 m³ SICOMA/BHS Twin Shaft Concrete Mixer at the core of the HZS120Y delivers the power and reliability you can depend on, ensuring consistent, high-quality concrete production every time.
2. SEAMLESS OPERATION WITH DKTECSOFT AUTOMATION
DKTECSOFT’s updated automation software, provides your plant operator with an intuitive interface, enhancing ease of use. It also boosts operational efficiency with advanced documentation and archive control features, ensuring smooth and reliable plant management.
3. EASY SETUP ON ZERO GROUND LEVEL
Thanks to the newly developed steel leg system, the HZS120Y can be installed directly on zero ground without the need for a special concrete foundation. This innovative design offers a significant cost advantage, reducing installation expenses.
