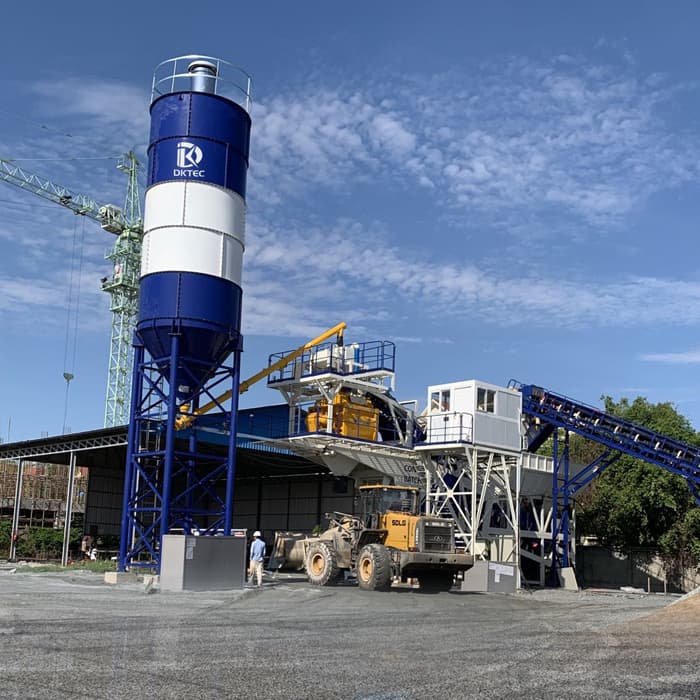

HZS25Y Mobile Concrete Batching Plant
The DKTEC HZS25Y Mobile Concrete Batching Plant is a compact and highly mobile concrete production solution designed to deliver 25 m³/h of reliable output for small construction projects. Featuring an integrated mobile chassis, a 0.5 m³ Twin Shaft Mixer, and the DKTEC Intelligent Control System, it offers fast installation, easy transportation, precise batching, and consistent concrete quality—making it the ideal choice for residential construction, municipal works, rural infrastructure, road maintenance, and temporary job sites.
Briefly HZS25Y
- The HZS25Y Mobile Concrete Batching Plant is specially designed for contractors looking for a compact, economical, and highly mobile concrete production solution. Featuring a 0.5 m³ Twin Shaft Concrete Mixer, it delivers up to 25 m³/h of high-quality concrete with excellent mixing performance, low energy consumption, and minimal maintenance requirements.
- Its 2×8 m³ aggregate bins, precision electronic weighing system, belt conveyor, mixer, and automatic control system are all integrated onto a heavy-duty mobile chassis, allowing the entire plant to be transported easily using a standard truck tractor. This modular design significantly reduces relocation time between different construction sites.
- Thanks to DKTEC’s Zero Foundation Installation Technology, the HZS25Y requires little civil engineering work and can be installed directly on compacted ground. The result is faster commissioning, lower installation costs, and greater flexibility for projects requiring frequent relocation.
HZS25Y Technical Specifications
Plant Capacity
| Item | Specification |
|---|---|
| Compacted Concrete Capacity | 25 m³/hour |
Concrete Mixer
| Item | Specification |
|---|---|
| Mixer Type | Twin-Shaft Mixer |
| Mixer Motor Power | 2×15 kW |
| Mixer Capacity | 0.5 m³ / cycle (Compacted Concrete) |
Feeding System
| Item | Specification |
|---|---|
| Aggregate Bin | 2x 8 m³ |
| Aggregate Feeding | Belt Conveyor |
Weighing Units
| Item | Specification |
|---|---|
| Weighing System | Precision Electronic Weighing System |
Highlights
1. HZS25Y : COMPACT & EFFICIENT MIXING PERFORMANCE
The HZS25Y is equipped with a 0.5 m³ Twin Shaft Concrete Mixer, delivering excellent mixing homogeneity and consistent concrete quality. Its optimized mixing structure shortens cycle time while reducing wear and maintenance costs, making it ideal for continuous production on small and medium-sized construction projects.
2. INTELLIGENT DKTEC AUTOMATION
The DKTEC Automatic Control System simplifies plant operation through an intuitive user interface. With automatic batching, recipe management, production statistics, fault diagnosis, and real-time monitoring, operators can achieve higher productivity with greater batching accuracy.
3. FAST MOBILITY & ZERO FOUNDATION INSTALLATION
Designed for rapid deployment, the HZS25Y features a fully integrated mobile chassis and modular steel support structure. Installation can be completed directly on compacted ground without constructing a concrete foundation, greatly reducing civil work, installation time, and overall project costs.
