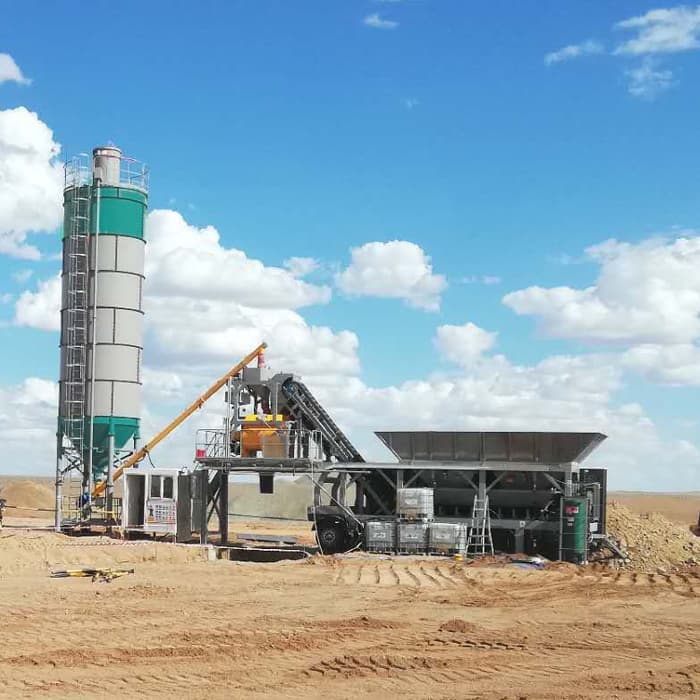

HZS60Y Mobile Concrete Batching Plant
The DKTEC HZS60Y Mobile Concrete Batching Plant is a compact and high-efficiency concrete production solution designed to deliver 60 m³/h of reliable output for small and medium-sized construction projects. Featuring a fully integrated mobile structure, a 1.0 m³ Twin Shaft Mixer, precision weighing systems, and the DKTEC Intelligent Control System, it enables fast installation, easy relocation, accurate batching, and consistent concrete quality. Its flexible design makes it an ideal choice for road construction, municipal engineering, bridge projects, rural infrastructure, and remote job sites where mobility, efficiency, and dependable performance are essential.
Briefly HZS60Y
- The HZS60Y Mobile Concrete Batching Plant is designed for projects requiring mobility, quick installation, and efficient concrete production.
- The plant integrates the mixing system, aggregate batching system, weighing systems, control room, and travel chassis into a compact mobile structure, allowing easy transportation and rapid deployment.
- Equipped with a 1.0 m³ twin-shaft mixer, the HZS60Y ensures consistent concrete quality while maintaining low energy consumption and easy maintenance.
- Its mobile chassis design enables convenient relocation between different job sites, making it an ideal solution for temporary projects, infrastructure construction, and areas with limited site conditions.
HZS60Y Technical Specifications
Plant Capacity
| Item | Specification |
|---|---|
| Compacted Concrete Capacity | 60 m³/hour (Mixing Time : 30 / 20 seconds) |
Concrete Mixer
| Item | Specification |
|---|---|
| Mixer Type | Twin-Shaft Mixer |
| Mixer Motor Power | 2×18.5 kW |
| Mixer Capacity | 1.0 m³ / cycle (Compacted Concrete) |
Feeding System
| Item | Specification |
|---|---|
| Aggregate Bin | 4x 10 m³ / Square Type |
| Aggregate Feeding | Aggregate Feeding Ramp or Pre-feeding System |
Weighing Units
| Item | Specification |
|---|---|
| Cement Weighing Hopper | 500 kg |
| Water Weighing Hopper | 200 kg |
| Admixture Weighing Hopper | 25 kg |
Highlights
1. HZS60Y : UNMATCHED POWER FOR EXCEPTIONAL PERFORMANCE
The HZS60Y is equipped with a 1.0 m³ forced twin-shaft mixer, providing excellent mixing efficiency and stable concrete quality.
The advanced mixing technology ensures uniform concrete consistency and reliable performance during continuous operation.
Advantages:
1.1.0 m³ high-efficiency twin-shaft mixer
2.Excellent mixing uniformity
3.Stable concrete quality
4.Low energy consumption
5.Easy maintenance
2. Mobile Design for Fast Deployment
The HZS60Y integrates the main production units on a mobile chassis, including the batching system, mixing system, control system, and supporting structure.
The complete travel system allows the plant to be transported easily and installed quickly at different project locations.
Advantages:
- Easy transportation
- Fast installation
- Reduced site preparation requirements
- Flexible relocation
- Suitable for temporary projects
3. Efficient Aggregate Batching & Conveying System
The HZS60Y adopts an integrated aggregate batching and inclined belt conveying system to ensure smooth material feeding and stable production.
The precision weighing system guarantees accurate aggregate measurement for consistent concrete quality.
Advantages:
- 2×12 m³ aggregate storage capacity
- Accurate aggregate weighing
- Stable material transportation
- Reduced material blockage
- Improved production efficiency
