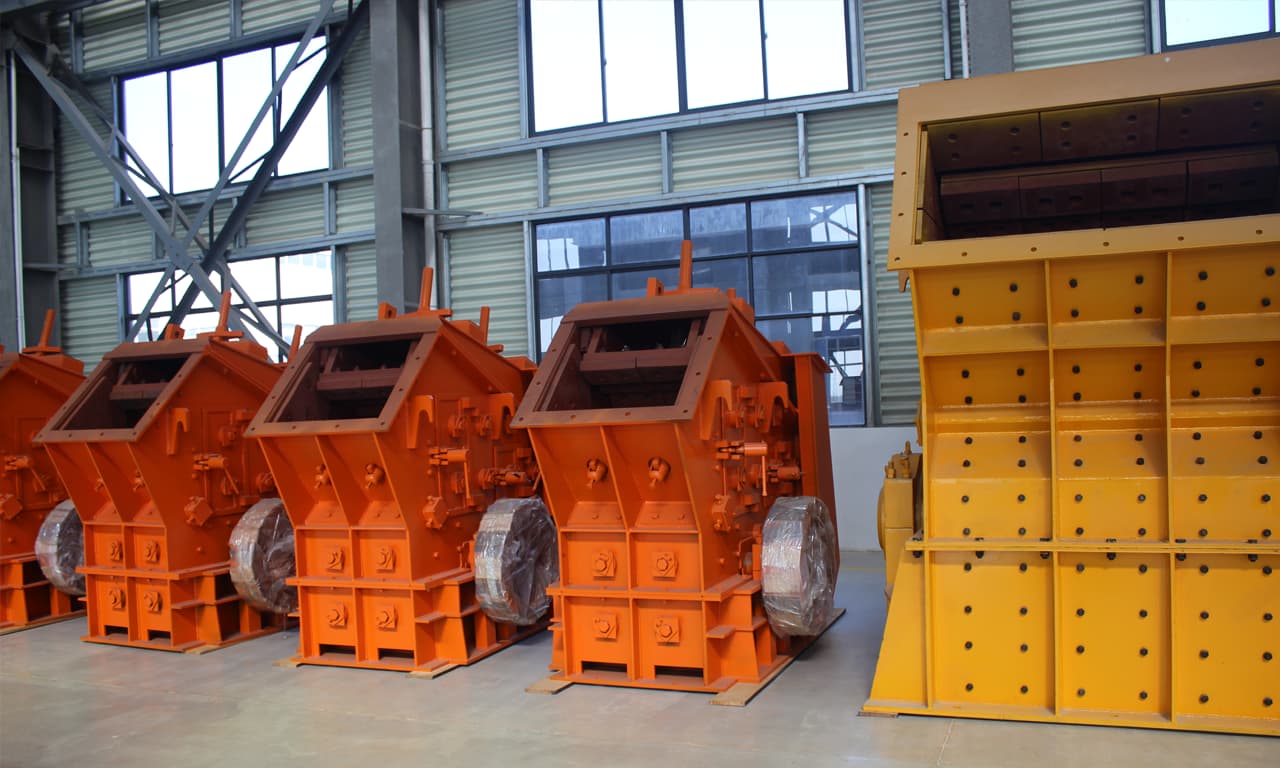

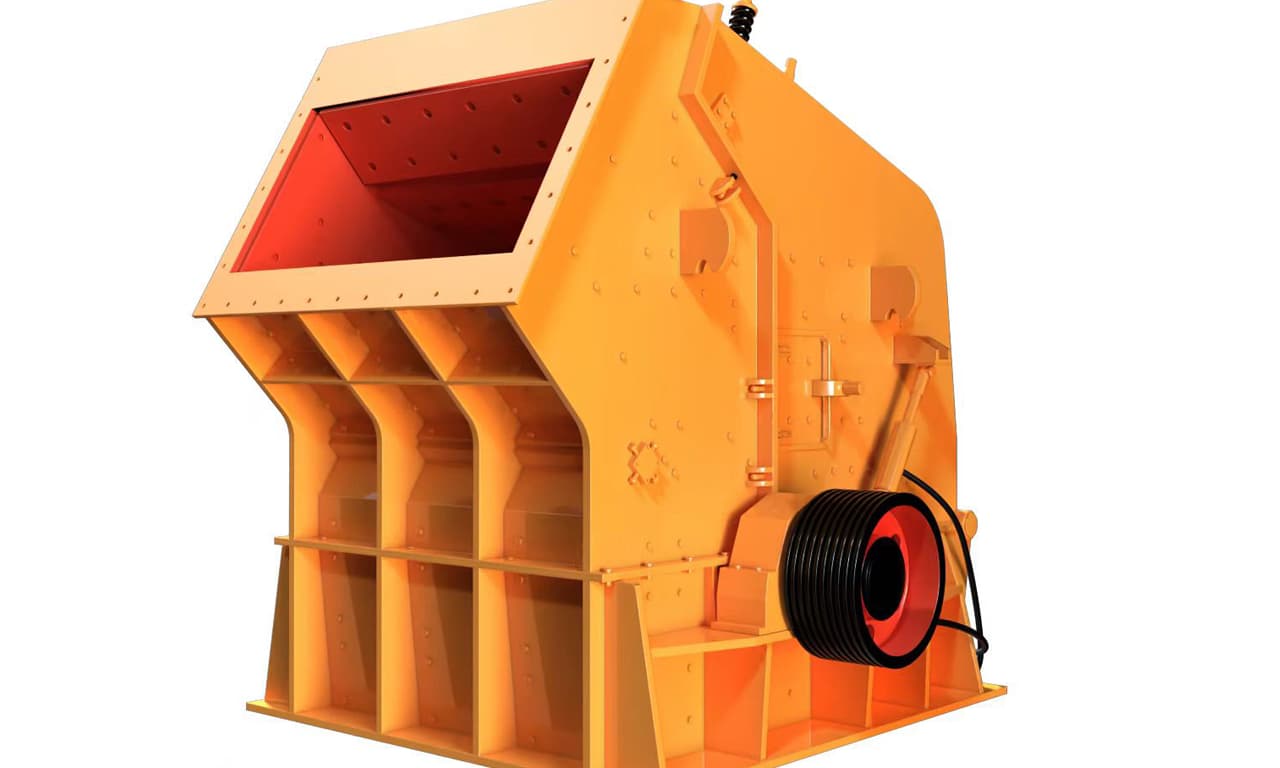

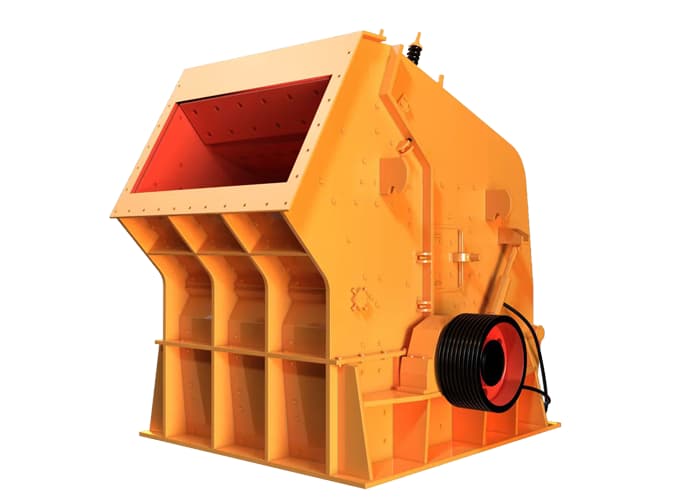

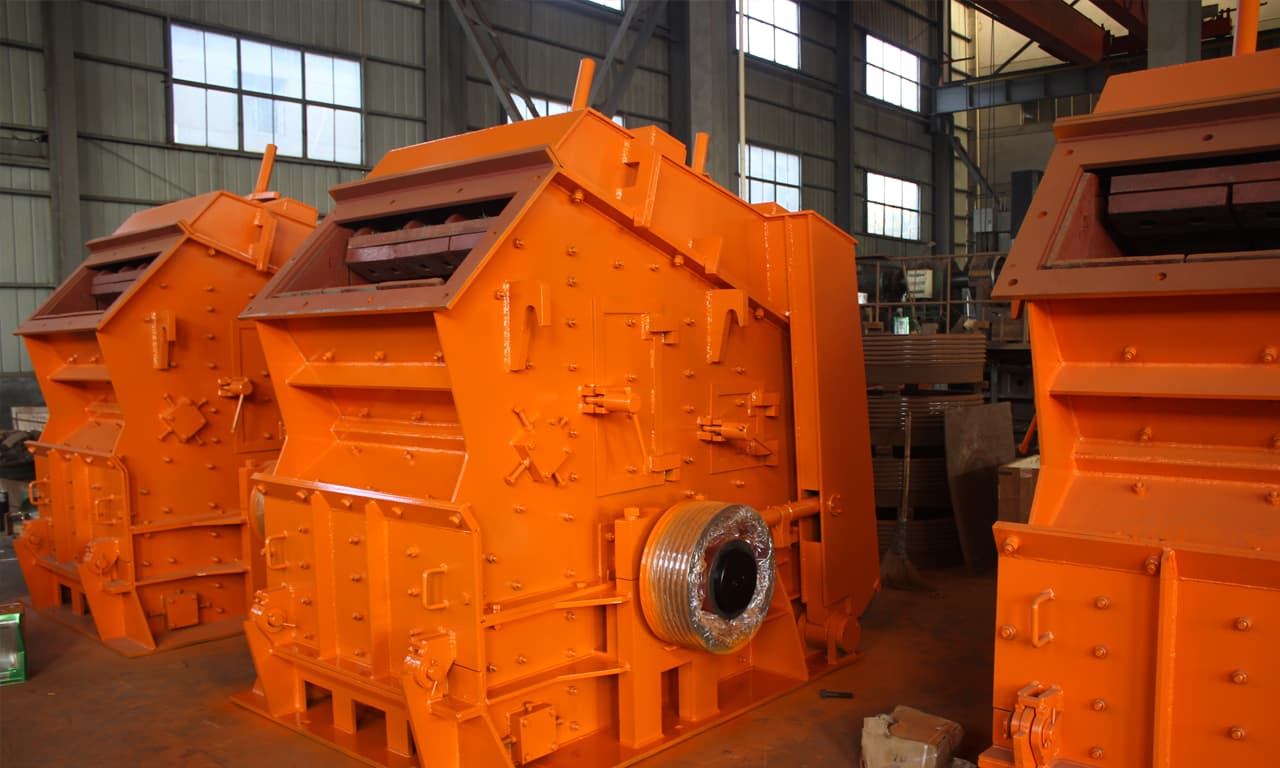

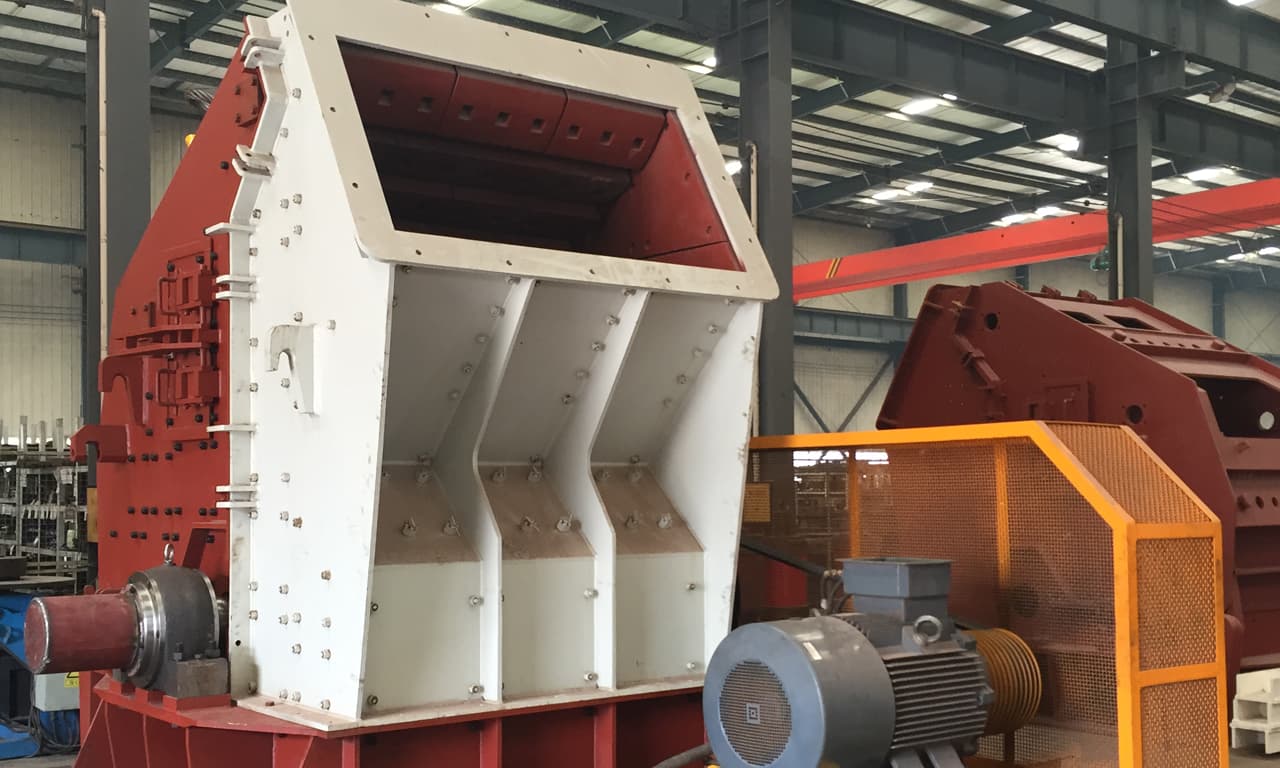

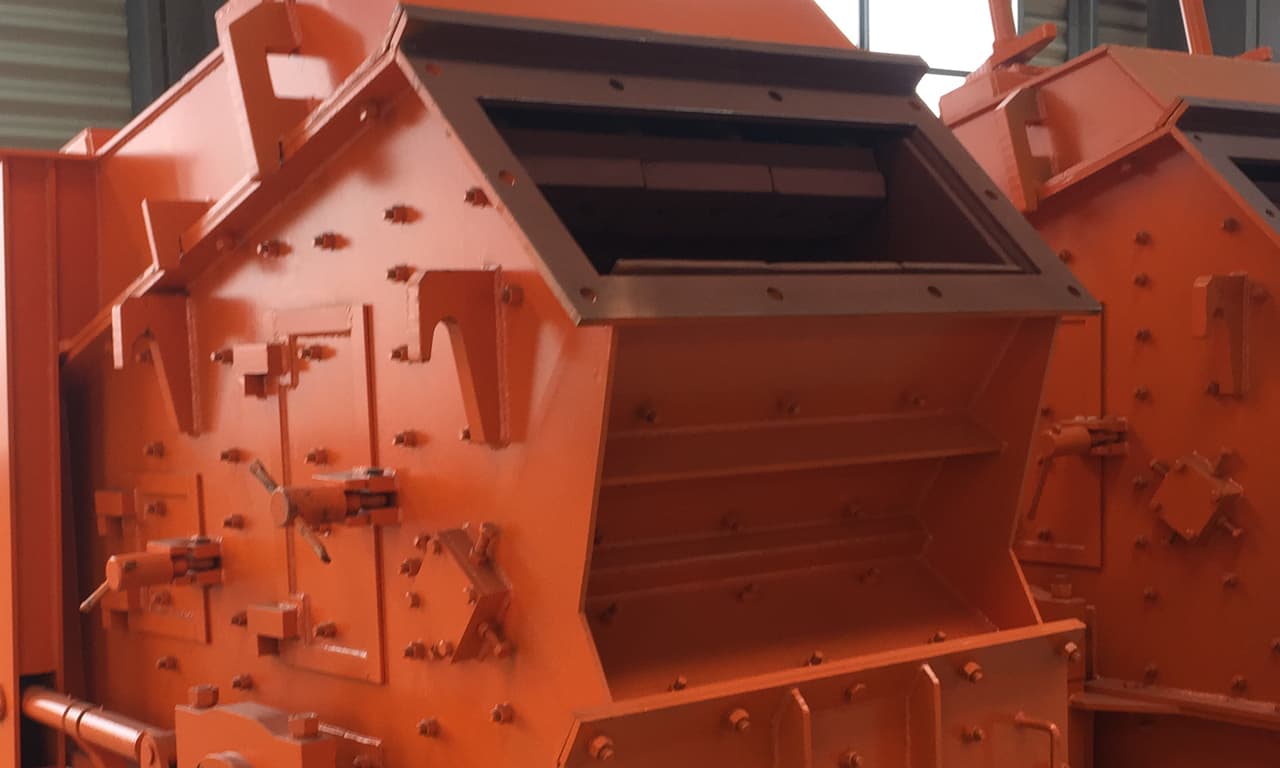

Impact Crusher

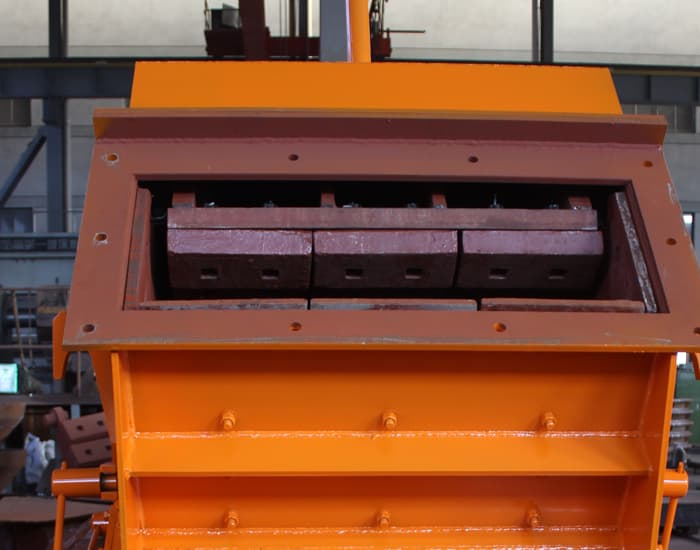

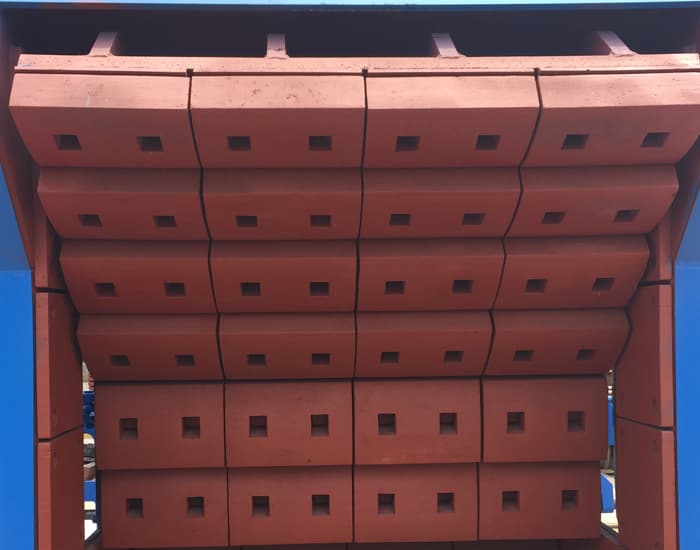

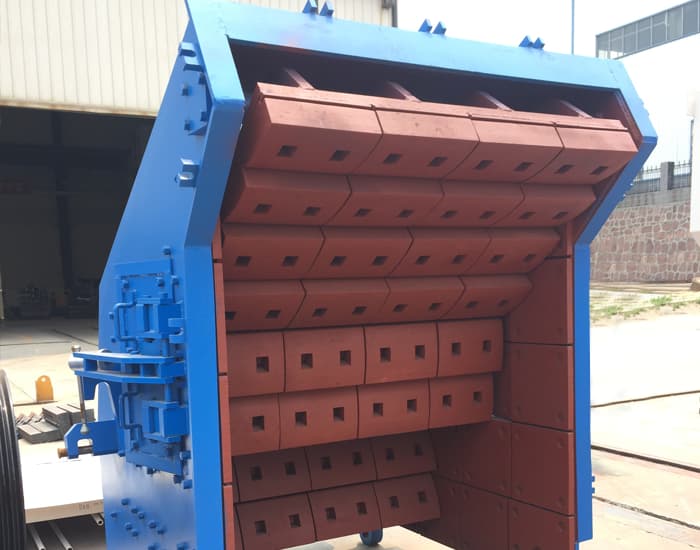

Impact crusher includes secondary and tertiary impact plate which can handle the material
sless than 10o-80omm in length; it is suitable to crush the medium hard material with
compressive resistance of 35oMPa. the discharging from impact crusher is small and fine

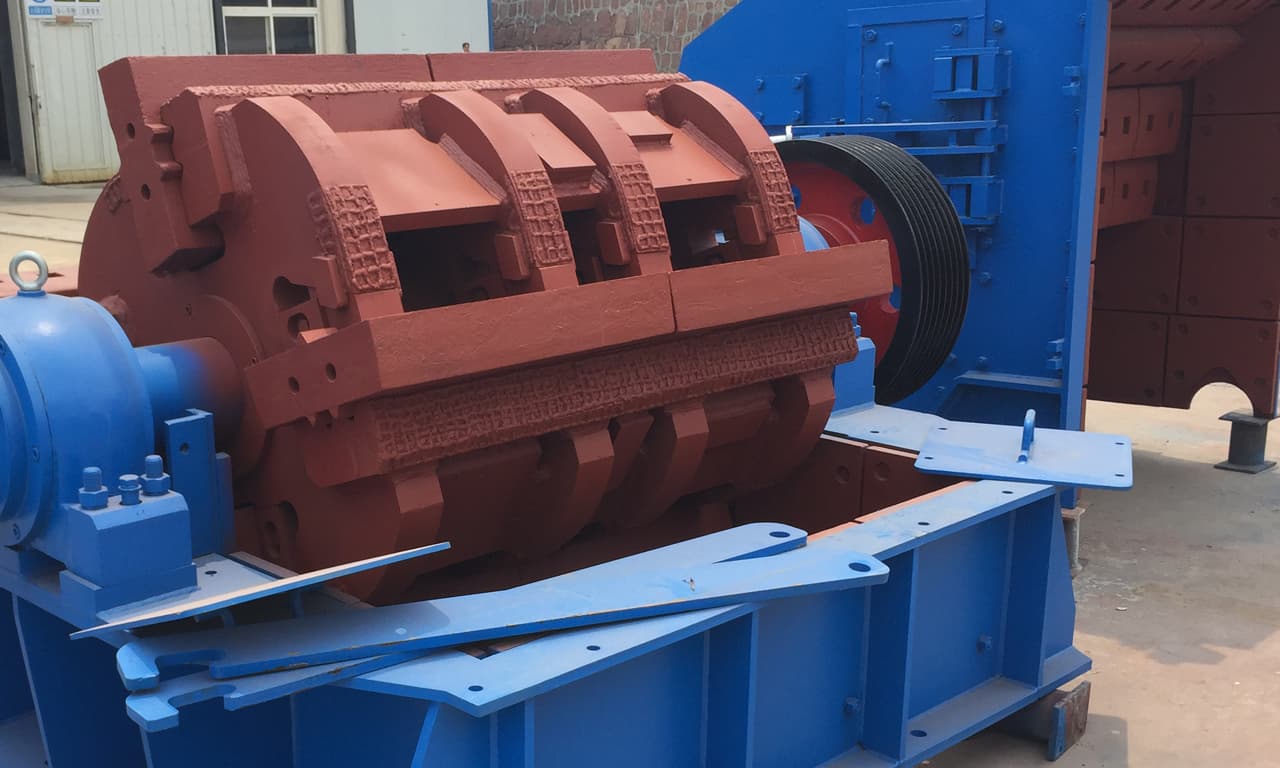

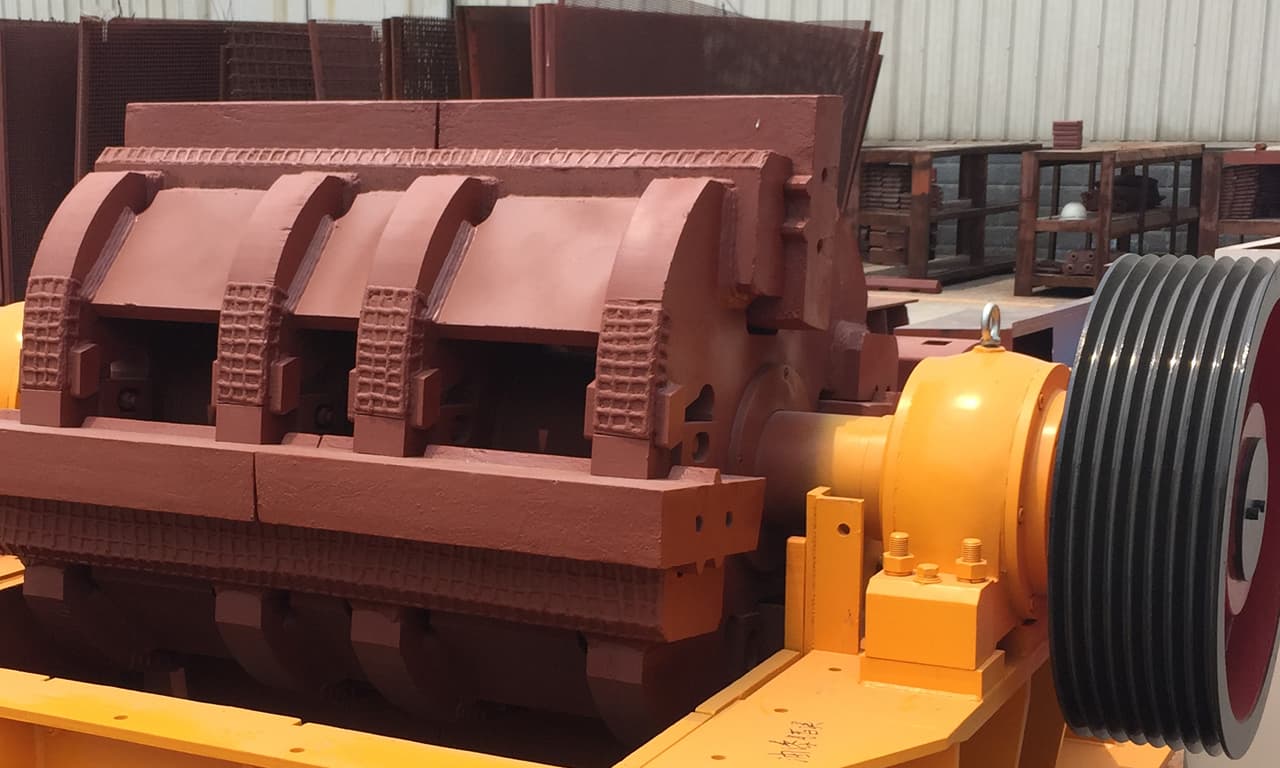

granularity of cubic shape. Elaborate design of rotor components makes the rotor with
good static and dynamic equilibrium to reach stable function and little noise of impact crusher.
Applications

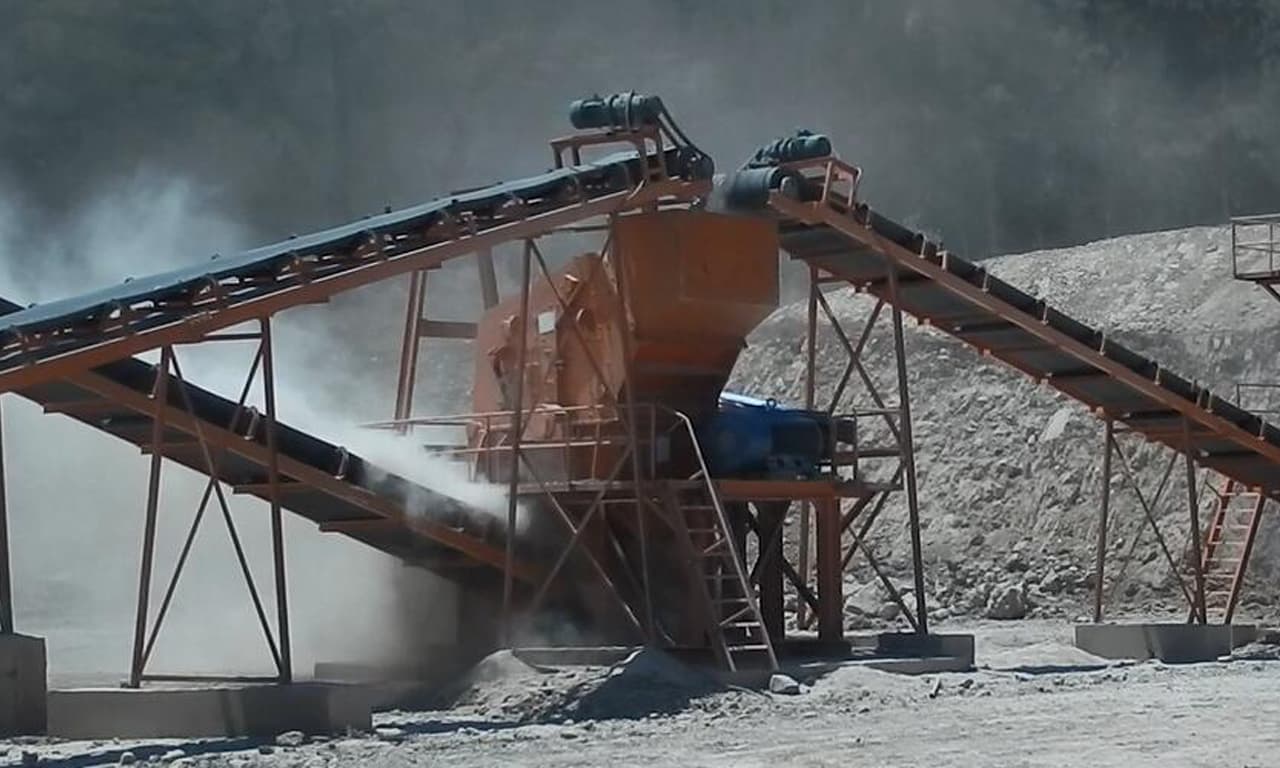

Impact crushers are employed for the efficient crushing of soft to medium-hard materials, such as limestone, gypsum, dolomite, coal, concrete, asphalt, and sandstone. They are widely used in quarrying, mining, construction, and recycling applications.
Why DKTEC Impact crushers ?
High throughput capacity due to large grinding grate respectively screening area,
Low space requirements due to extremely low construction height,
Large intake cross-section for bulky feed material,
High and constant capacity,

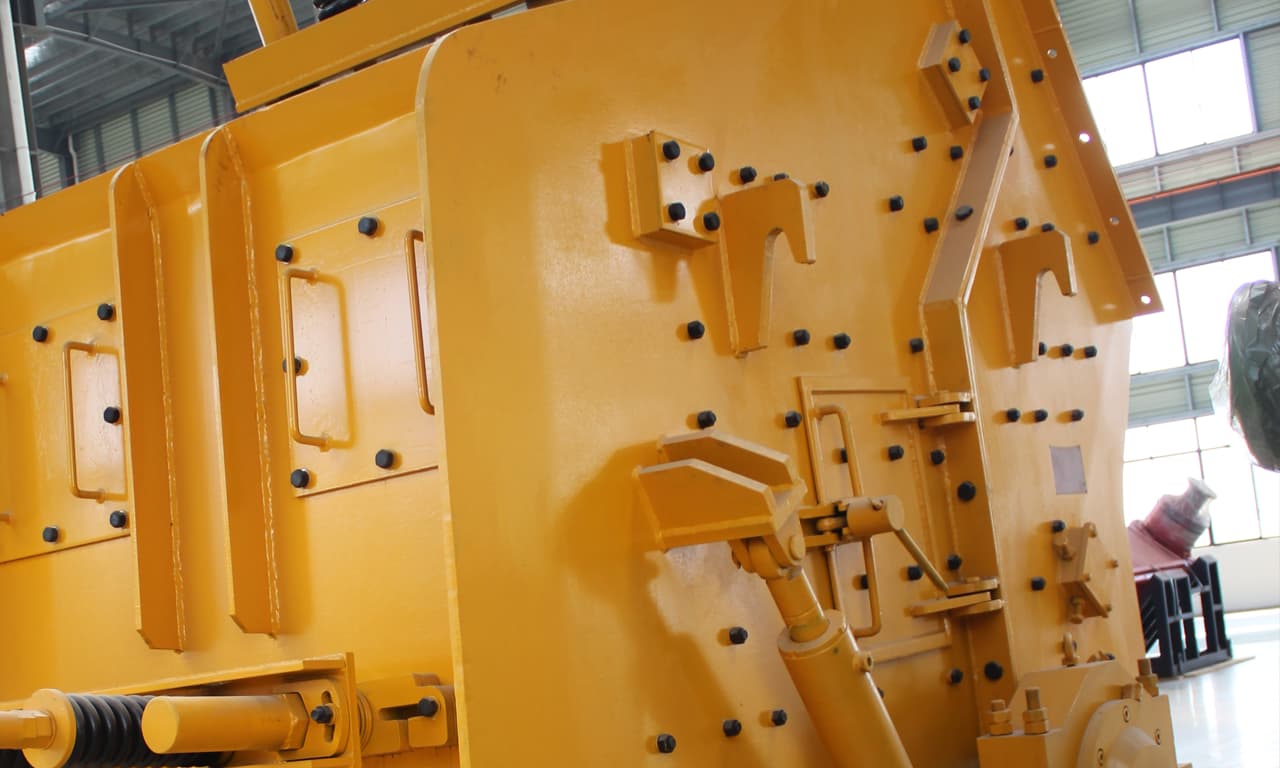

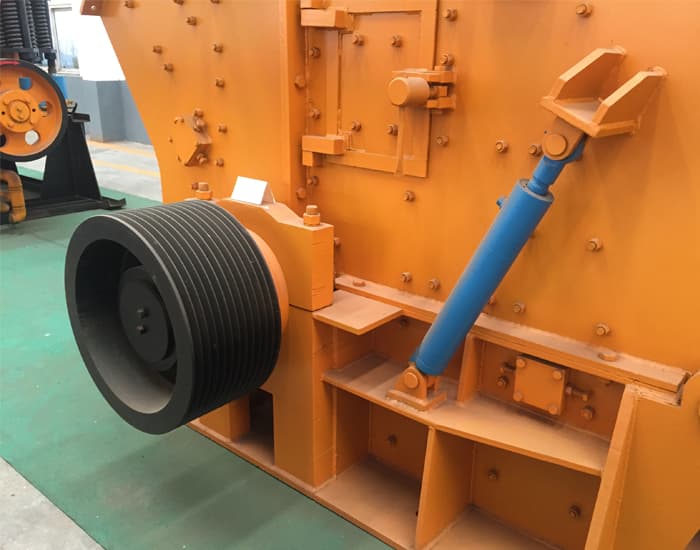

Easy replacement of wear and spare parts through hydraulic opening device,
Broad range of applications,
High reduction ratio.

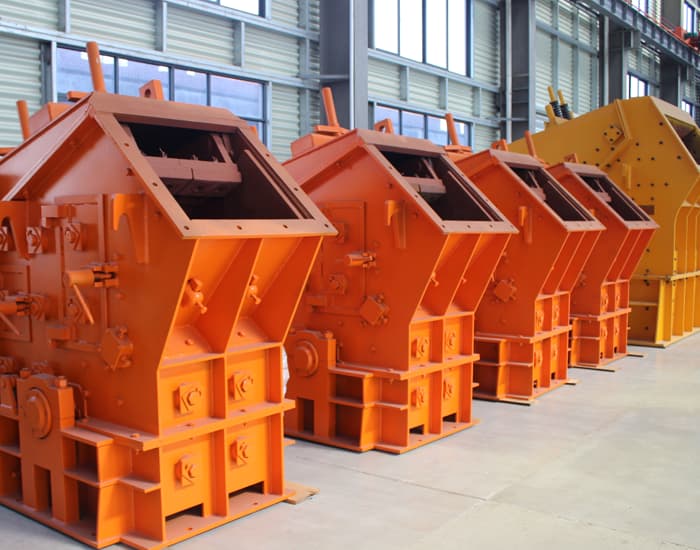

Impact Crusher Advantages
DKTEC Impact Crusher Download Catalogue
Impact Crusher Technical Specifications
| Model | Feeding opening size (mm) | Max Feeding size (mm) | Capacity (t/h) | Power (kw) | Weight (t) | Dimension (mm) |
|---|---|---|---|---|---|---|
| PF-1010 | 1080×400 | 350 | 50-80 | 75 | 12.6 | 2532×1985×2796 |
| PF-1210 | 1080×400 | 350 | 80-130 | 110 | 14 | 2638×2037×2713 |
| PF-1214 | 1430×400 | 350 | 100-160 | 132 | 18.5 | 2580×2400×2810 |
| PF-1315 | 1520×860 | 350 | 140-200 | 220 | 19.3 | 2840×2748×2556 |
| PF-1316 | 1640×880 | 350 | 150-220 | 200 | 19.5 | 3096×2900×2667 |
| PF-1515 | 1640×900 | 360 | 240-290 | 260-280 | 26.5 | 3400×3550×3285 |
| PFV-1010 | 1080×400 | 350 | 60-100 | 75 | 13.2 | 2500×1985×2800 |
| PFV-1210 | 1080×400 | 350 | 70-150 | 110 | 15.2 | 2620×2035×2730 |
| PFV-1214 | 1430×400 | 350 | 100-200 | 132 | 18.6 | 2570×2500×2800 |
| PFV-1315 | 1520×860 | 350 | 150-300 | 220 | 24.5 | 2950×3050×2400 |
* For material weighing 1.6 t/m³ or 100 lbs/ft³. Capacity values are indicative only, crusher performance may vary depending on the feed gradation, feed moisture content,crushability of the material, crusher rpm, installed power and the crushing circuit design.
** Weights shown do not include drive motor package, support legs, maintenance platform, inlet and outlet chutes
