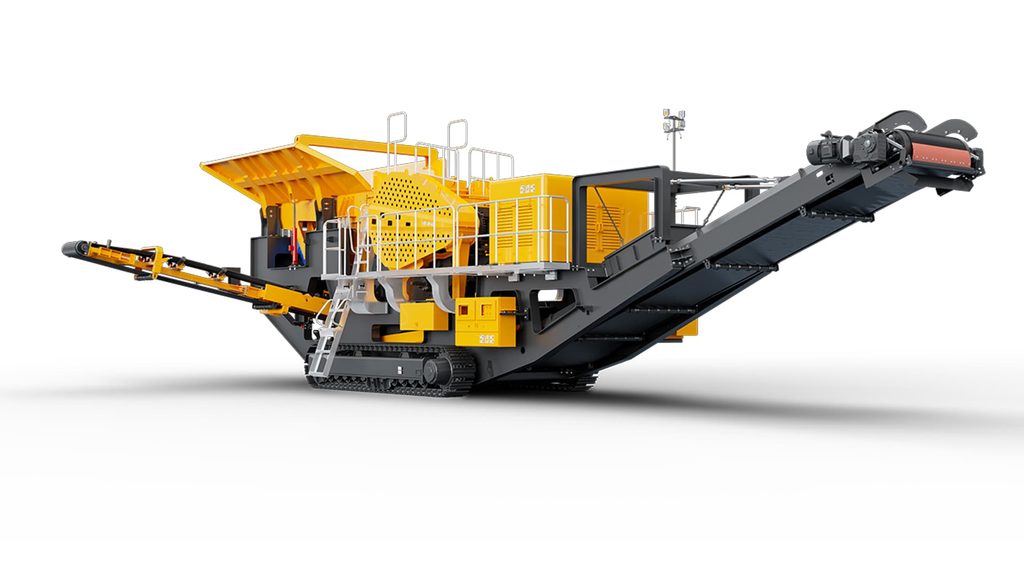

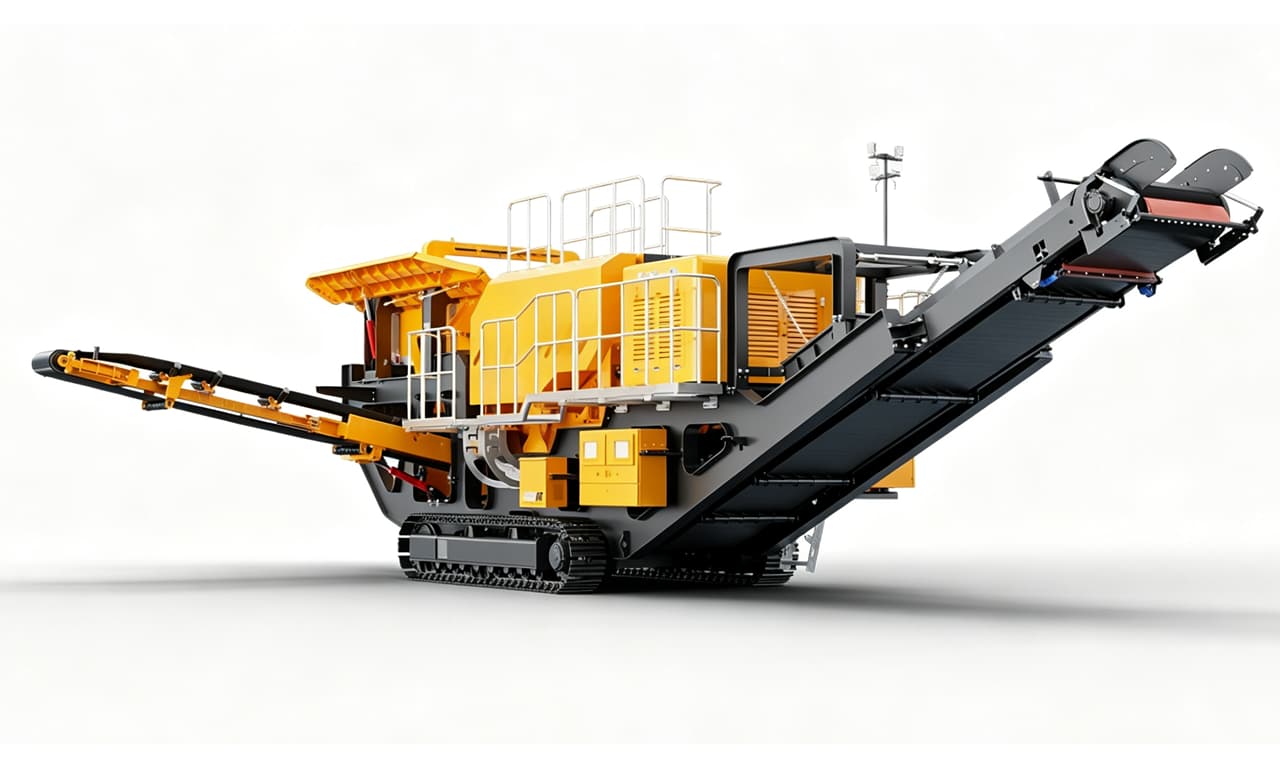

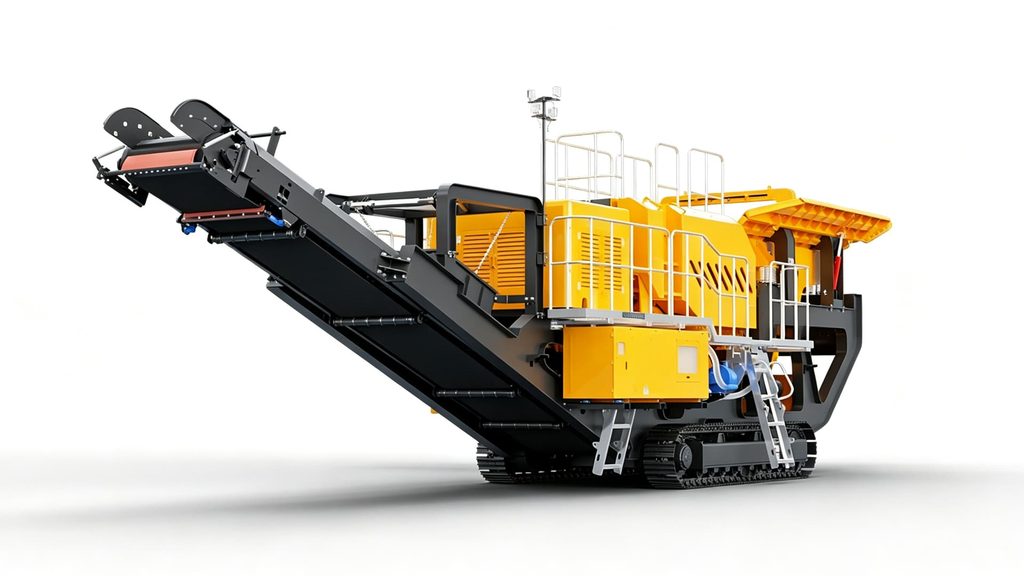

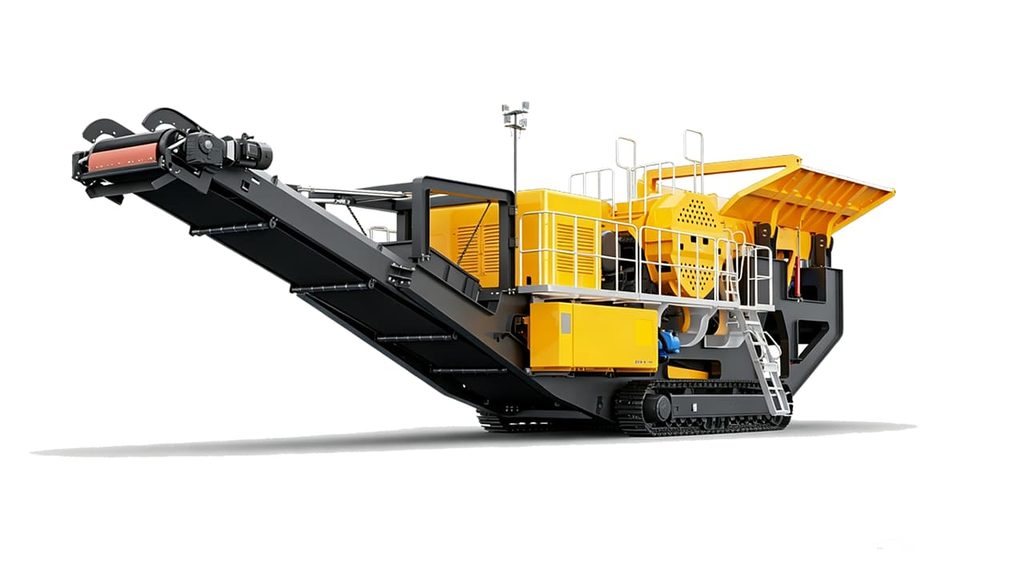

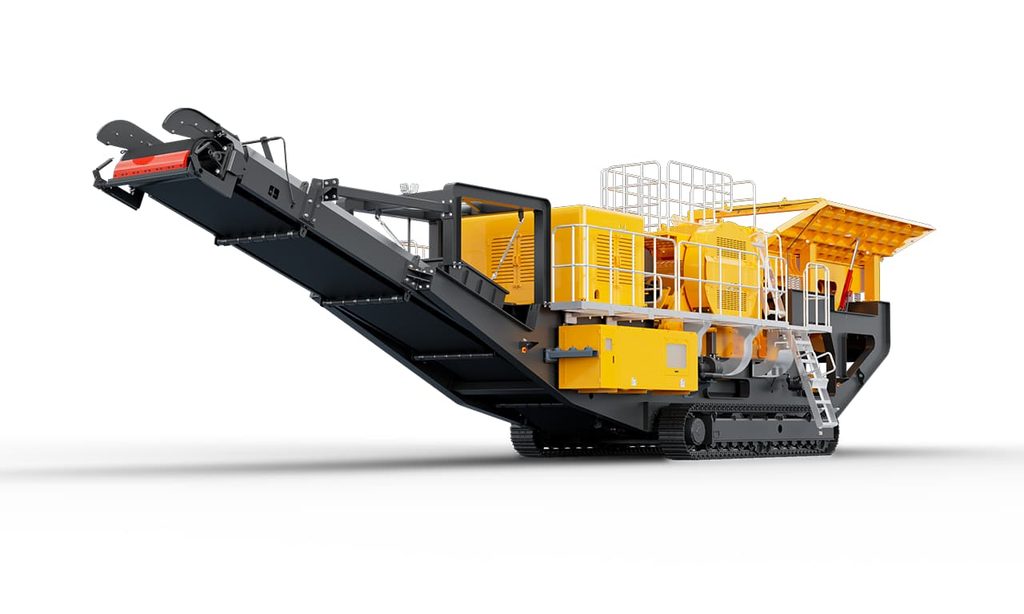

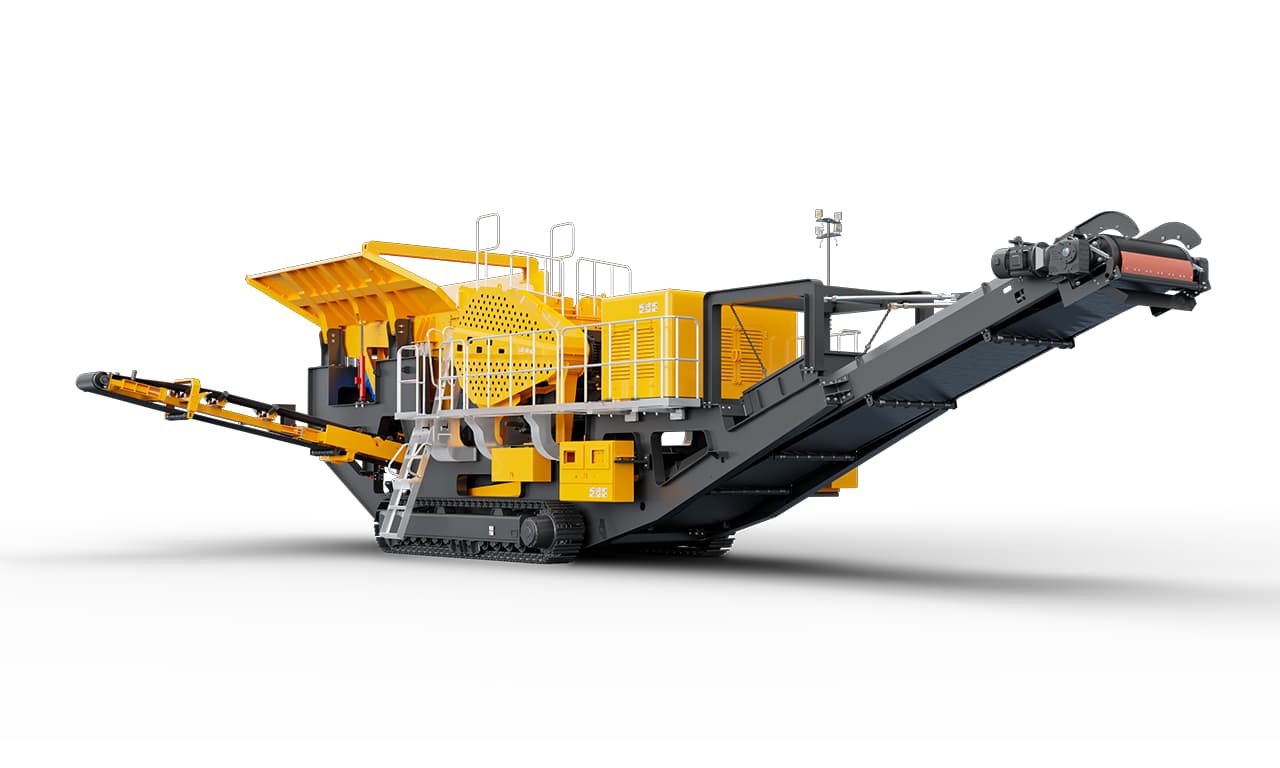

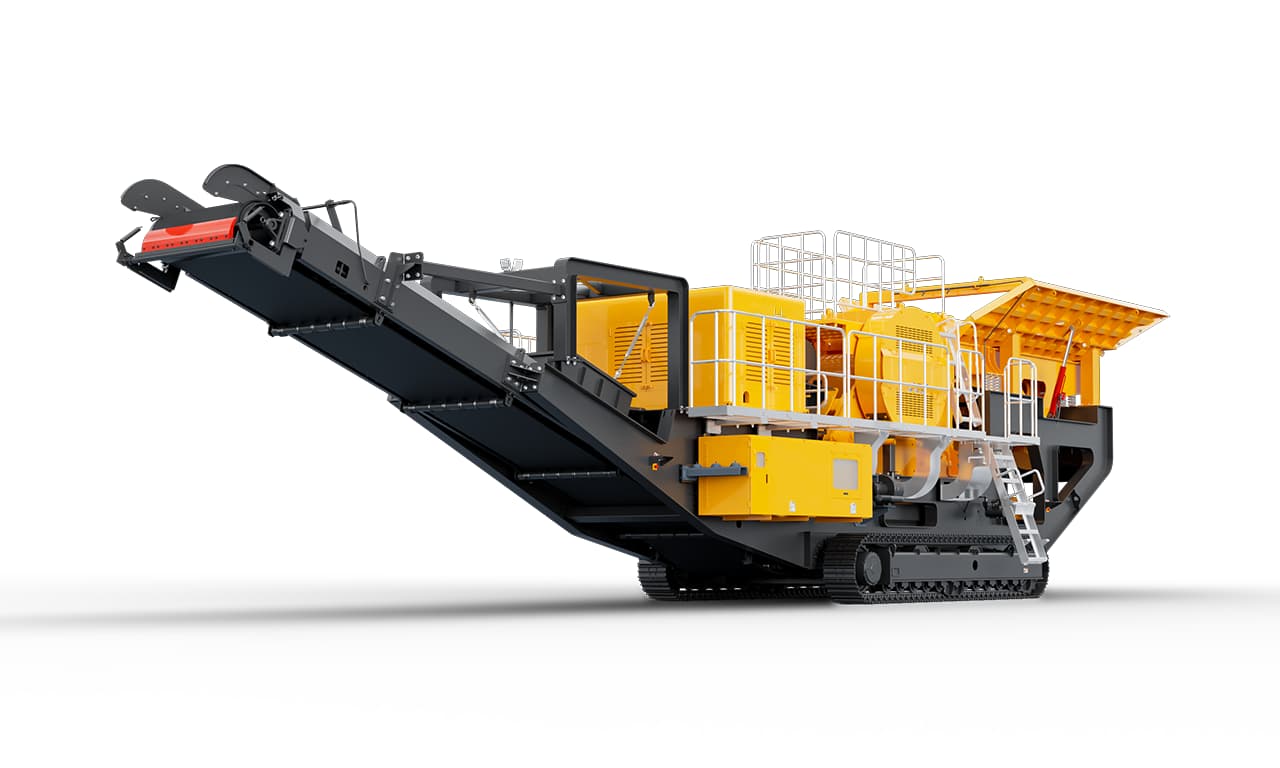

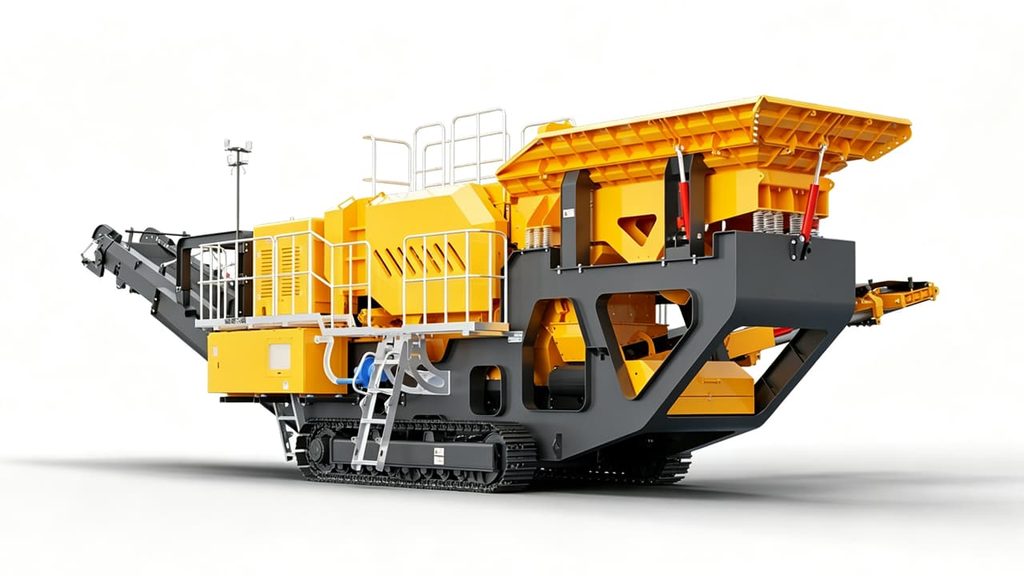

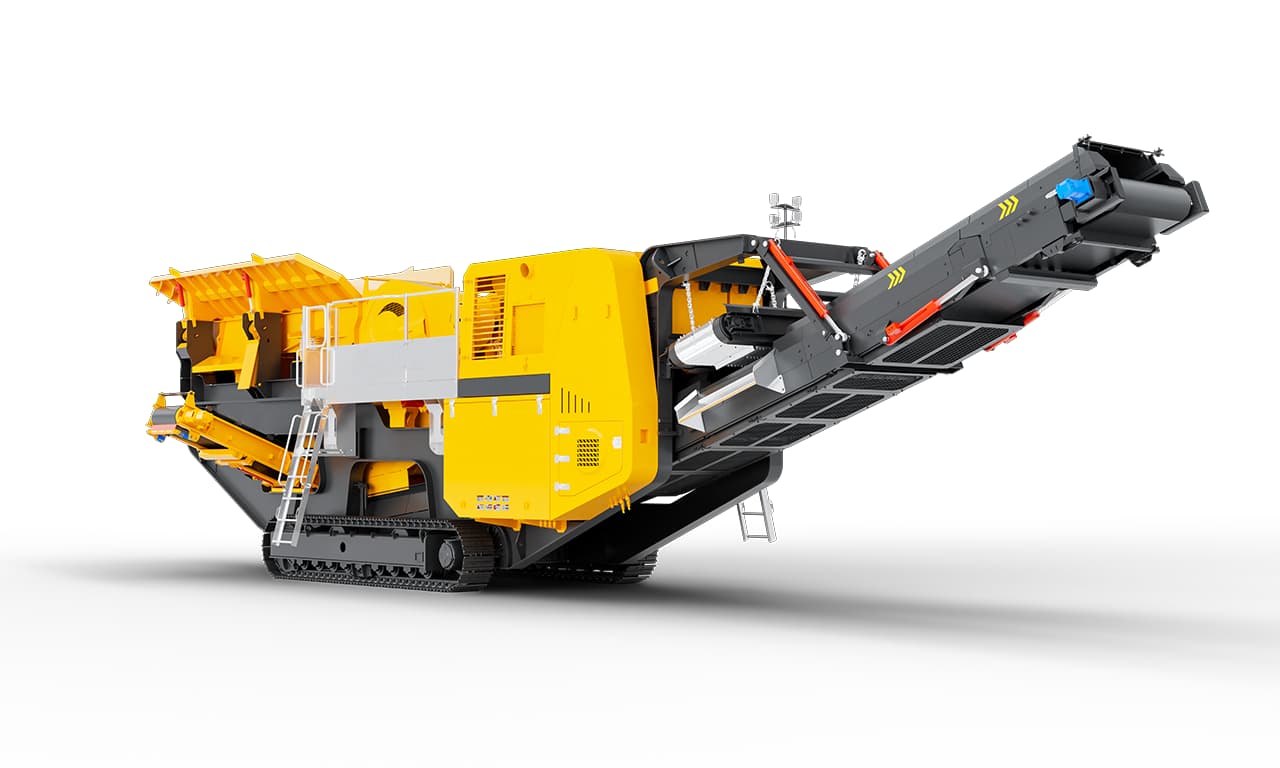

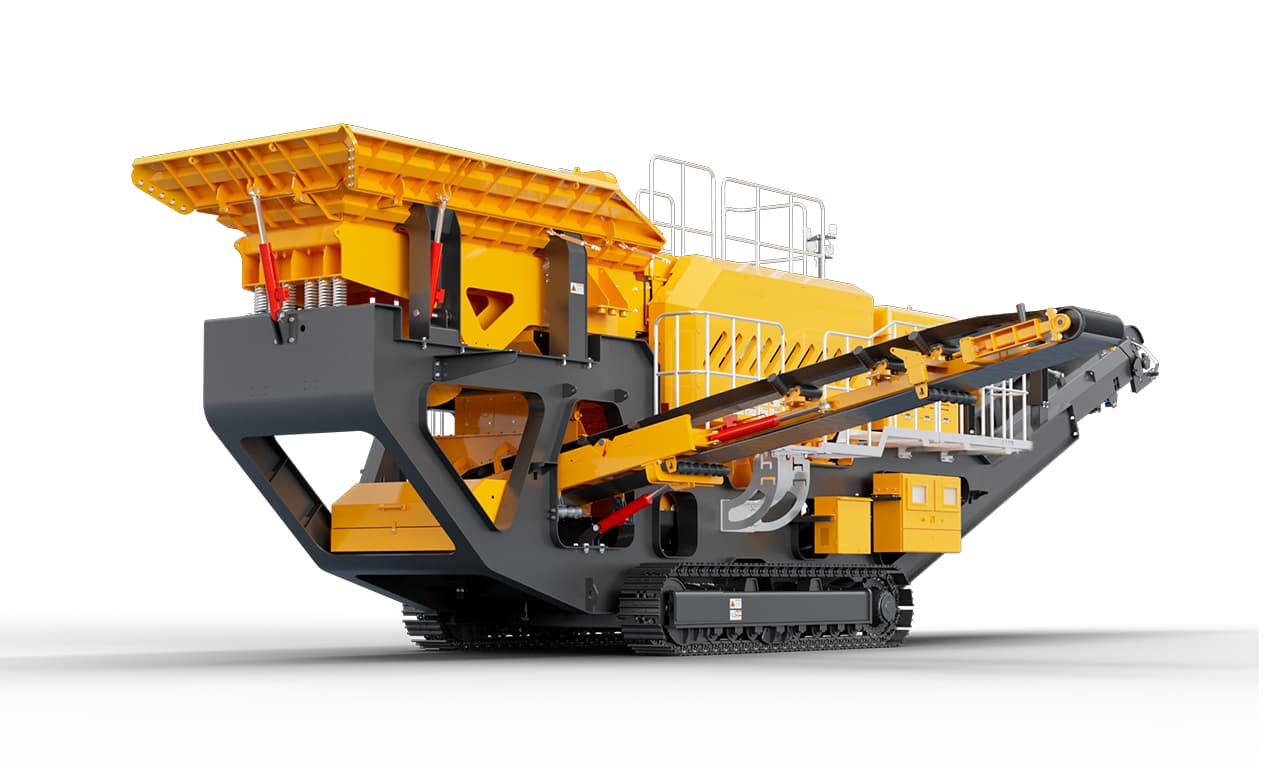

Mobile Jaw Crushers

Mobile Jaw Crushers are primary crushing units fully assembled on a single trailer frame and mounted on a double or triple axle bogie. Featuring the highly reliable and productive MJ jaw crushers they come complete with feeder, motors, starters, frequency drive and electrical control panel.

Applications

Suitable for crushing hard and soft rock, such as granite, basalt, limestone, and as well recycled materials, mobile jaw crushers are the optimal choice if you want to move the crushing plant from one site to another periodically.

They are easily transportable between production sites and often utilized in aggregates production and recycling applications

Why DKTEC Mobile Jaw Crushers?

Wide Application:

Designed for primary crushing of hard and abrasive materials such as granite, limestone, basalt, and recycled concrete, DKTEC Mobile Jaw Crushers are suitable for aggregates, mining, construction and recycling applications.

Robust & Reliable:

Built with a heavy-duty chassis and high-strength structural components, the mobile jaw crusher is engineered to withstand demanding operating conditions. The proven jaw crusher design delivers reliable performance and consistent crushing results.

Fast & Flexible Operation:

The integrated mobile design allows the crushing plant to be transported and relocated between different sites with reduced installation requirements. Quick setup and straightforward operation help operators start production faster and minimize downtime.

Efficient Crushing:

The optimized combination of vibrating feeder, jaw crusher and discharge conveyor ensures smooth material flow and efficient primary crushing. The feeder helps regulate material loading, while the jaw crusher provides stable and powerful crushing performance.

Easy Maintenance:

Key components are arranged for convenient access, making routine inspection, wear-part replacement and maintenance easier. This helps reduce maintenance time and keeps the plant running efficiently.

Integrated Control System:

A centralized electrical control system provides convenient control of the feeder, jaw crusher and discharge conveyor. The control cabinet can be positioned appropriately according to site conditions, improving operational convenience and safety.

Flexible Mobility:

The robust trailer-mounted chassis, heavy-duty axles and road-going equipment allow the plant to be moved efficiently between working sites, making it an ideal solution for contractors and aggregate producers handling multiple projects.

Highlights

Mobile Jaw Crushers Technical Specifications

Model	DKJ-1626	DKJ-2032	DKJ-2640	DKJ-3045	DKJ-3542
Feeding Equipment
Feeding Capability [t/h]	100	300	400	500	500
Maximum Feeding [mm]	380	430	550	630	630
Feeding Height [mm]	3200	4275	3750	3900	3500
Hopper Volume [m³]	3	4	4	5	5
Vibrating Feeding
Length × Width [mm]	3100×600	2350×800	3700×950	3800×1100	5250×1000
Power [kW]	2.2×2	3×2	3×2	3.7×2	15
Crusher
Special-purpose Jaw Crusher Model	1626	2032	2640	3045	3542
Crusher Opening Size [mm]	420×650	800×510	670×1000	750×1130	870×1060
Maximum Feeding [mm]	380	430	550	630	630
Discharging Size [mm]	30-100	40-125	60-200	70-200	90-220
Weight [t]	6.5	8.3	12.5	22	19
Power [kW]	37	75	90	110	110
Main Belt Conveyor
Discharge Height [mm]	3000	3100	3100	3200	3100
Length × Width [mm]	8000×650	10000×800	13000×1000	13000×1000	11000×1000
Power [kW]	4	7.5	11	11	11
Rear Belt Conveyor
Discharge Height [mm]	2000	3350	2000	2300	–
Length × Width [mm]	2580×600	6500×650	2800×600	2800×600	–
Power [kW]	3	4	3	3	–
Overall Unit
Walking Engine Power [kW]	76	86	86	106	106
Total Weight [t]	15	30	38	45	53
Processing Capacity [t/h]	30-80	60-280	110-400	150-500	110-300
Transportation Dimension [m]	11×2.5×3.2	12.6×3×3.8	15.5×3.2×3.8	16.6×3.2×3.8	16.5×3.3×3.8
Total Power [kW]	48.4	92.5	110	131.4	136

*Note: Specifications and configurations are subject to change without prior notice. Please contact our sales team for the latest product information.
