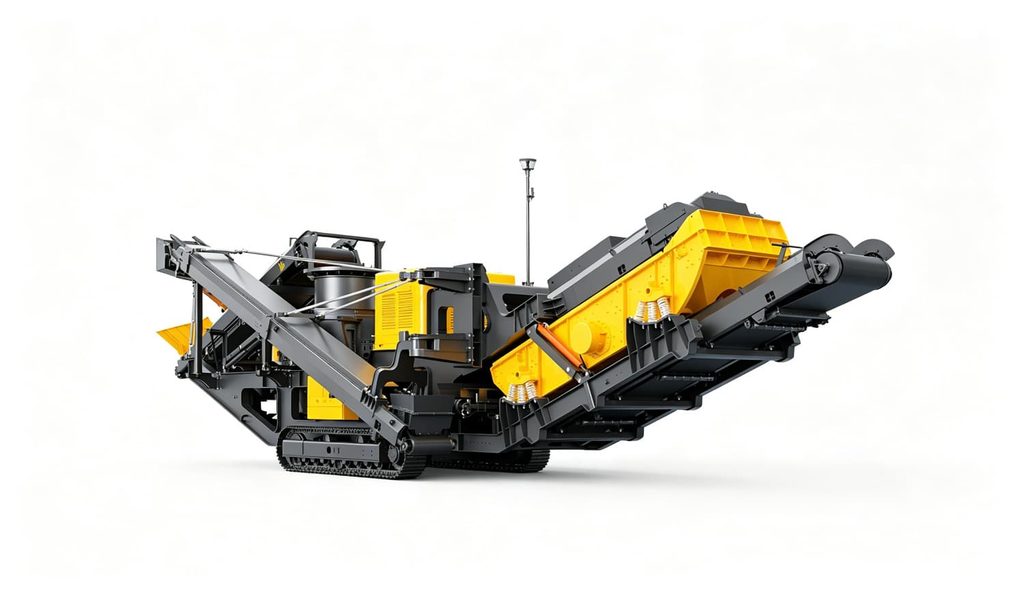

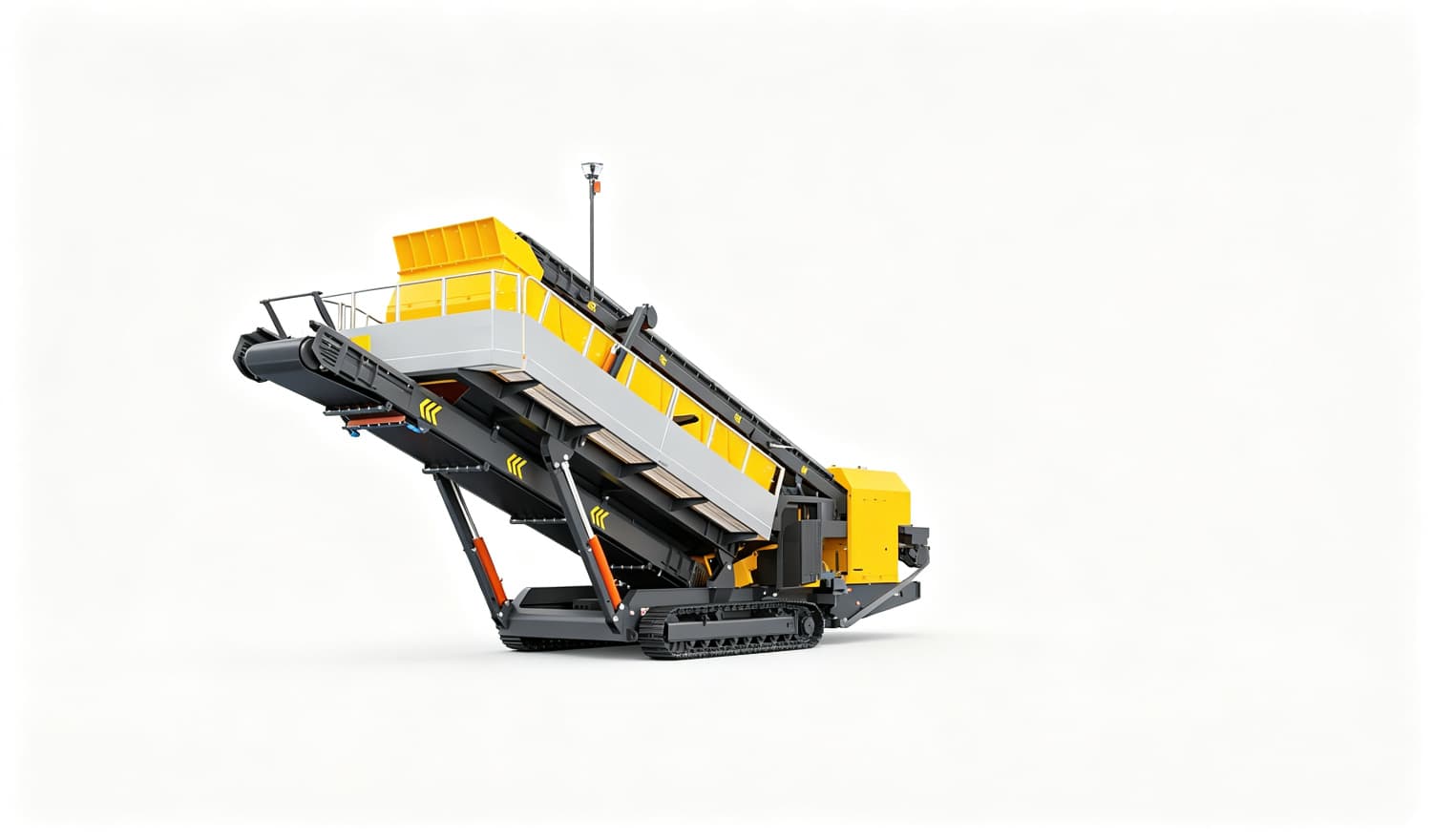

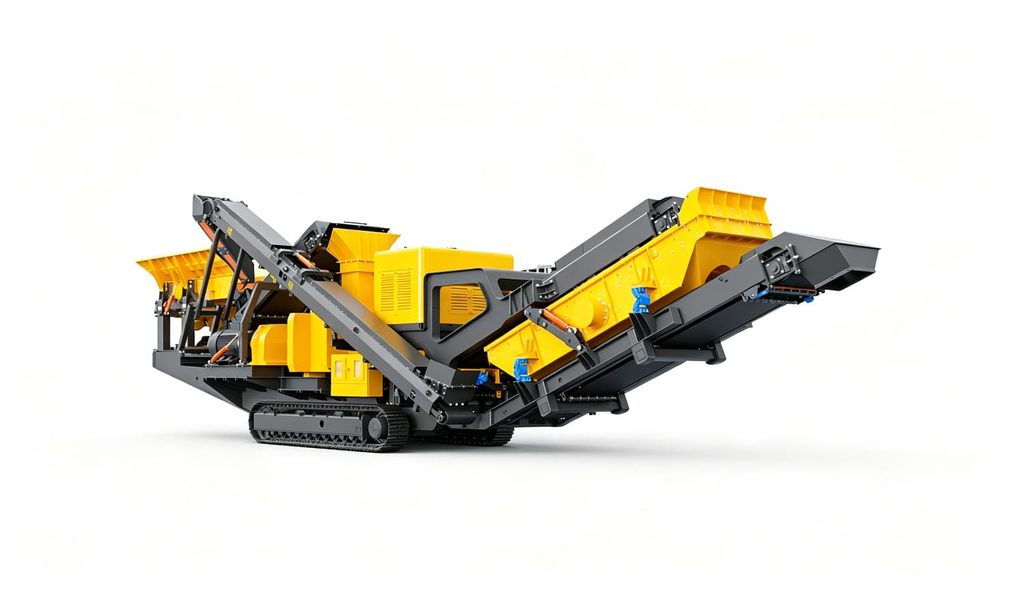

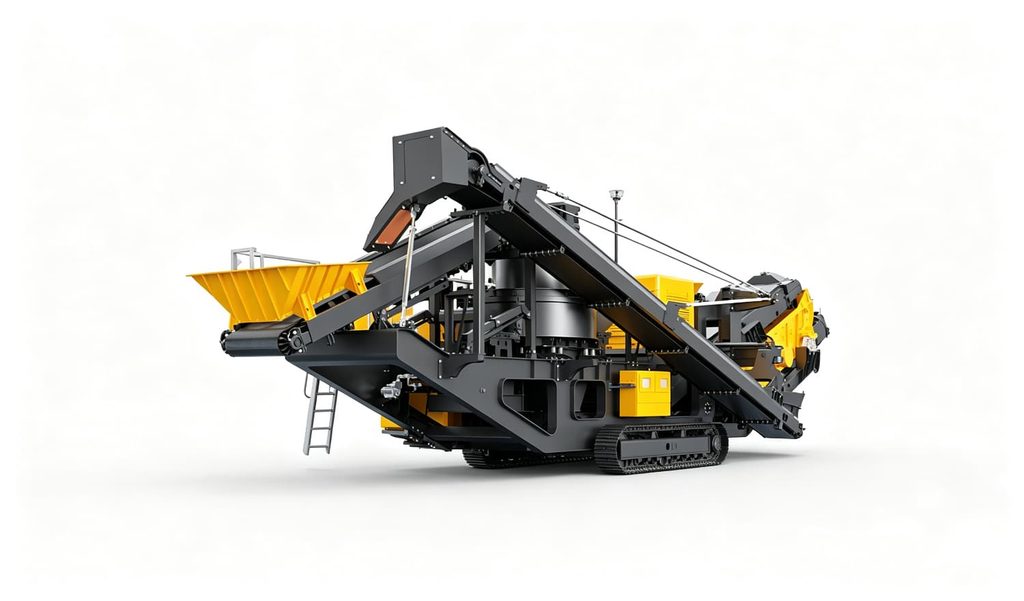

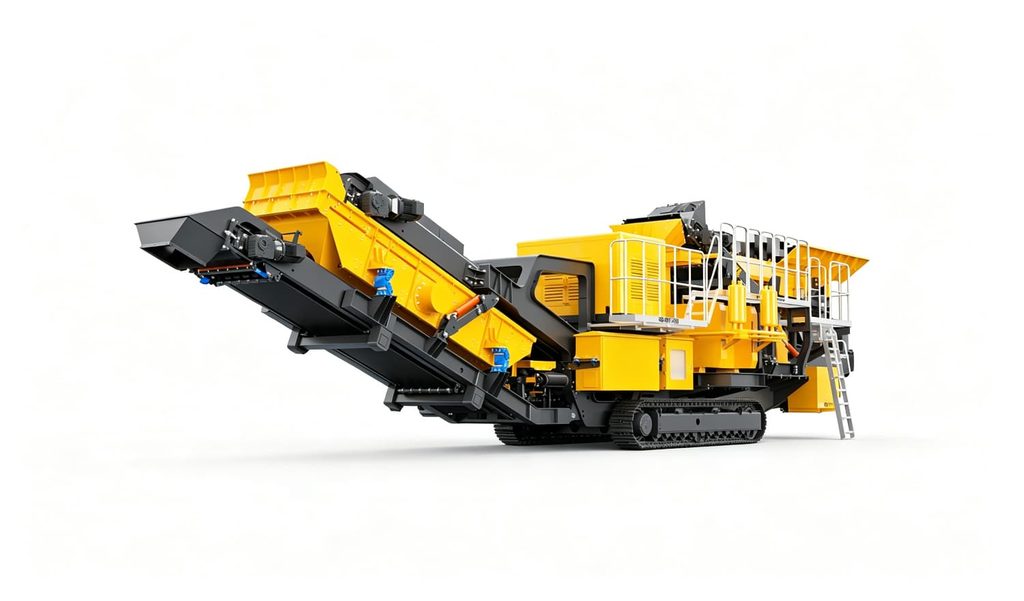

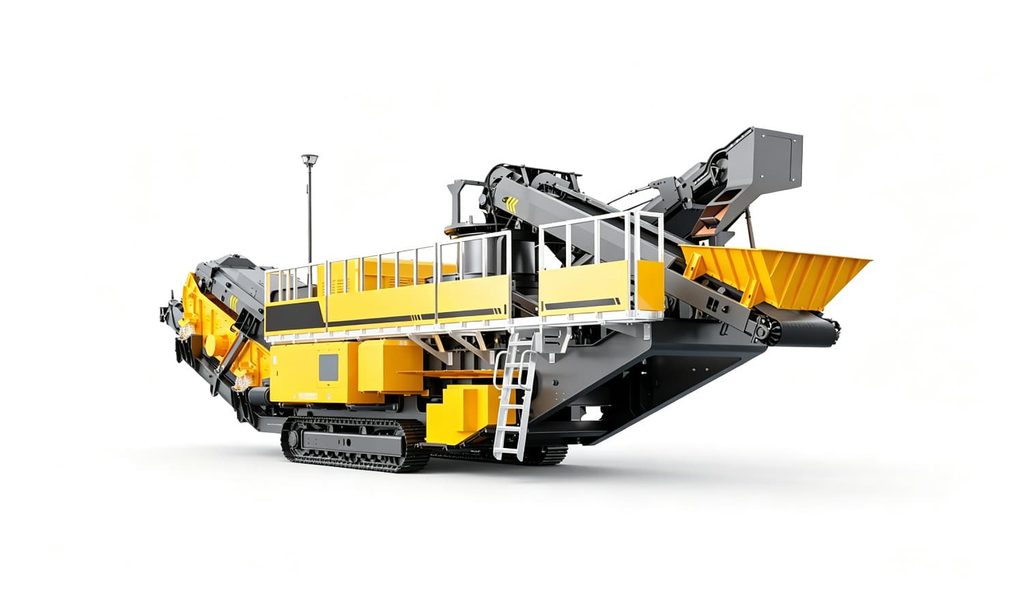

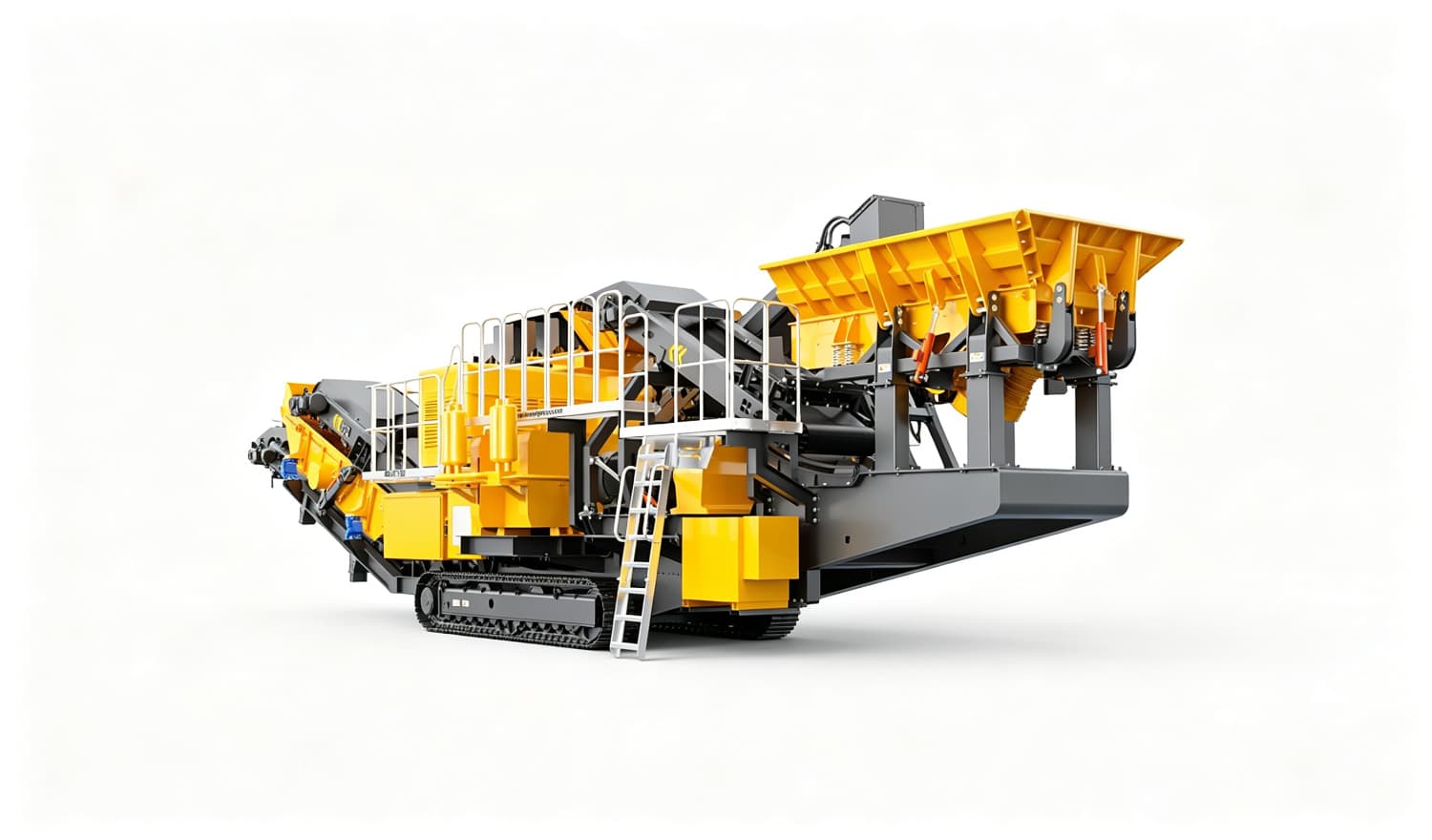

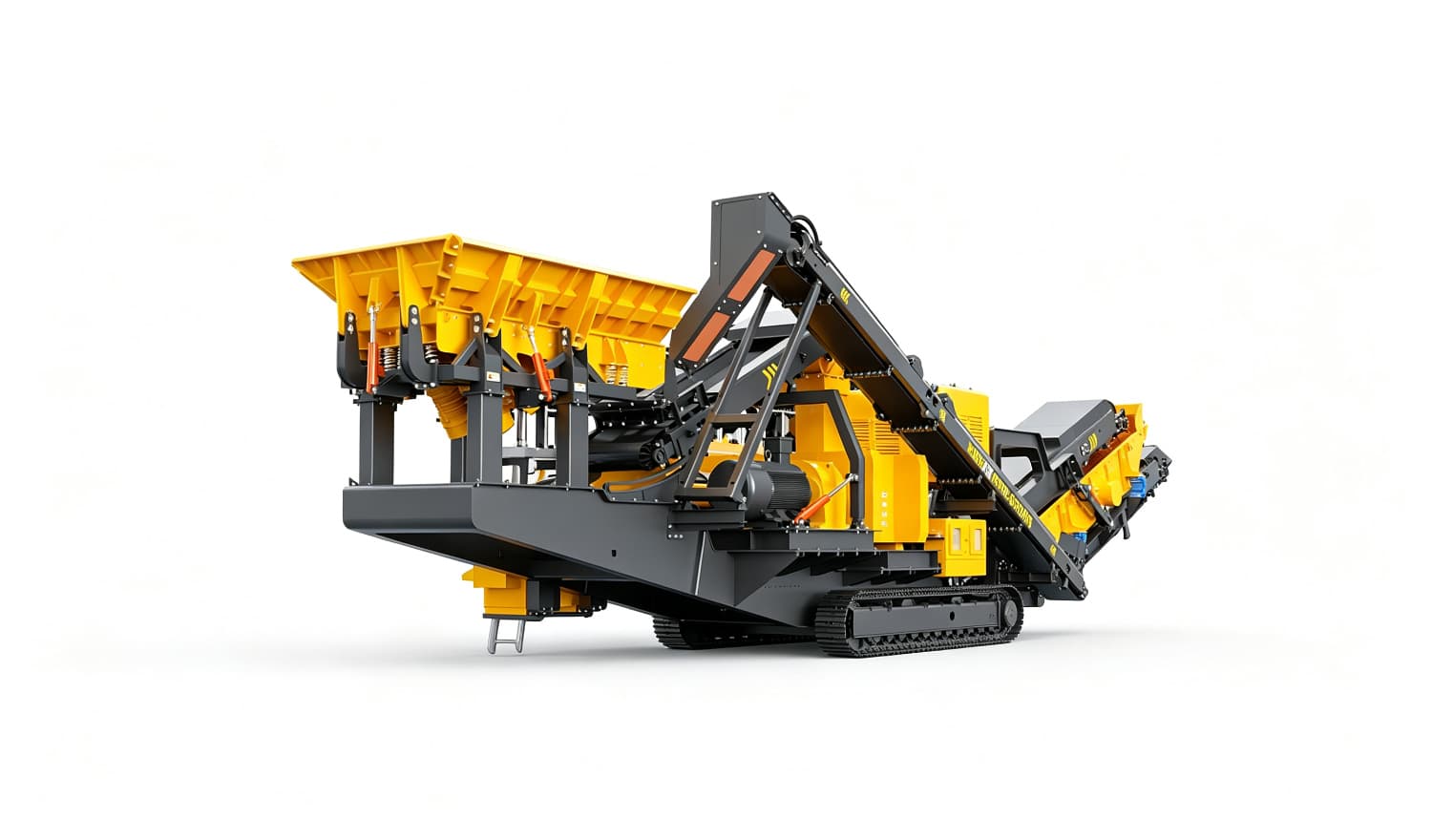

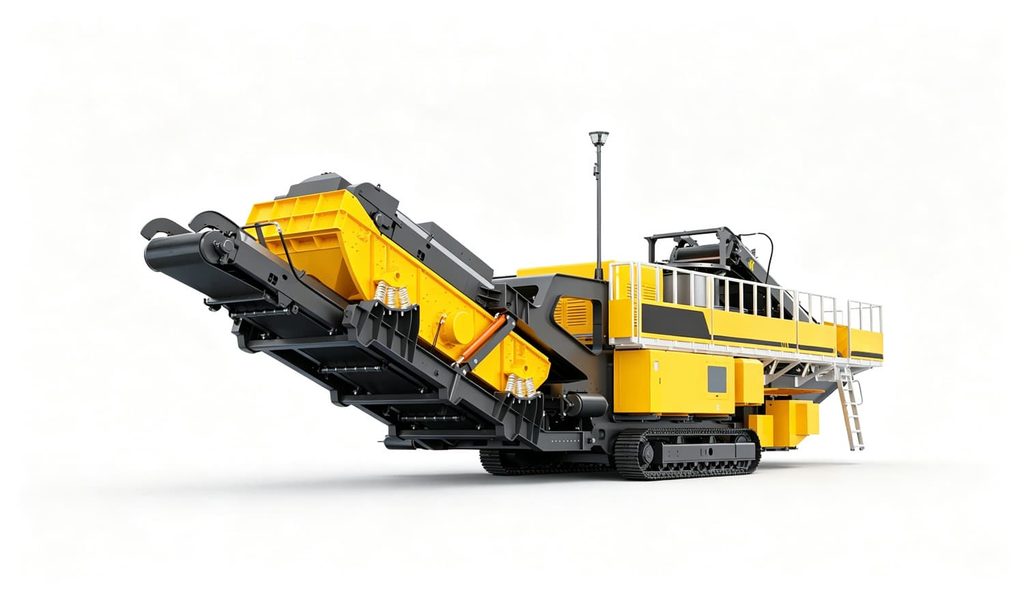

Mobile Vertical Shaft Impact Crusher
DKTEC VSI Vertical Shaft Impact Crusher is designed to deliver efficient shaping and fine crushing of a wide range of materials. Based on advanced crushing principles, it combines high-speed impact crushing with a robust and optimized structure to achieve excellent particle shape and consistent product quality.
With its simple design, reliable operation and strong material adaptability, the VSI crusher is suitable for applications including manufactured sand production, aggregate shaping, fine crushing and mineral processing. Its efficient crushing performance and controlled operating costs make it a practical solution for both stationary and mobile crushing plants.
Designed for demanding working conditions, DKTEC VSI crushers offer stable performance, convenient maintenance and flexible application across different types of rock and mineral materials. With reliable equipment and professional technical support, DKTEC provides efficient VSI crushing solutions for customers in the aggregates, mining and construction industries.
Applications
VSI Series Vertical Shaft Impact Crusher can be widely used in many industries, such as metal and nonmetallic ore,refractory material, raw material for glass ceramics, construction material and highway, hydraulic engineering and hydraulic power project, aggregate production. It is superior to other types of crushers especially for the materials with medium and high degree of hardness as well as hard abrasive materials such as silicon carbide, bauxite,magnesia and so on.
The machine can use the high speed of impeller at 8om/s.lt can be used in making the final products with bettershape to optimize grain size distribution and make the fineness modulus smaller.
Why DKTEC VSI Series Vertical Shaft Impact Crusher?
Excellent Particle Shape:
The high-speed impact crushing principle produces well-shaped, cubical aggregates, making DKTEC VSI crushers ideal for manufactured sand and high-quality aggregate production.
High Crushing Efficiency:
Optimized rotor and crushing chamber design provide efficient impact crushing and excellent material reduction, helping achieve consistent product quality and high production capacity.
Wide Material Adaptability:
Suitable for a variety of materials, including granite, basalt, limestone, river stone and other hard or abrasive rocks. It can be used for fine crushing, shaping and manufactured sand production.
Flexible Application:
DKTEC VSI crushers can be used as tertiary or quaternary crushers in complete crushing and screening plants, as well as in manufactured sand production lines.
Durable & Reliable:
Heavy-duty construction and carefully selected wear-resistant components ensure reliable operation under demanding working conditions and extend service life.
Easy Maintenance:
The practical structural design provides convenient access to key components and wear parts, making inspection, maintenance and replacement faster and easier.
Optimized Operating Costs:
Efficient crushing performance, reasonable power consumption and durable wear parts help reduce operating and maintenance costs while maintaining stable production.
Highlights
VSI Series Vertical Shaft Impact Crusher Technical Specifications
| Model | DKP-935 | DKP-1040 | DKP-1247 |
|---|---|---|---|
| Feeding Equipment | |||
| Feeding Capability [t/h] | 100 | 150 | 250 |
| Max Feeding Size [mm] | 100 | 120 | 150 |
| Feeding Height [mm] | 3500 | 3500 | 3500 |
| Bucket Capacity [m³] | 1.0 | 1.5 | 2 |
| Belt Feeder | |||
| Feeding Inlet Length × Width [mm] | 4250×500 | 4250×650 | 4500×800 |
| Power [kW] | 3 | 4 | 5.5 |
| Crusher | |||
| Adjustable Counterattack Hammer Crusher Model | 935 | 1040 | 1247 |
| Feeding Inlet Length × Width [mm] | 720×420 | 830×500 | 860×500 |
| Max Feeding Size [mm] | 80 | 90 | 100 |
| Weight [t] | 5.6 | 7.8 | 9.5 |
| Power [kW] | 110-160 | 160-220 | 250-315 |
| Main Belt Conveyor | |||
| Height [mm] | 2800 | 2800 | 2800 |
| Length × Width [mm] | 8000×500 | 8000×650 | 8000×800 |
| Power [kW] | 4 | 4 | 7.5 |
| Overall Unit | |||
| Walking Engine Power [kW] | 72.6 | 86 | 86 |
| Total Weight [t] | 15 | 17 | 20 |
| Processing Capacity [t/h] | 35-60 | 40-90 | 60-120 |
| Transportation Dimension [m] | 10.5×3.2×3.7 | 11×3.2×3.7 | 11.5×3.2×3.8 |
| Total Power [kW] | 117-167 | 168-228 | 263-328 |
*Note: Specifications and configurations are subject to change without prior notice. Please contact our sales team for the latest product information.
