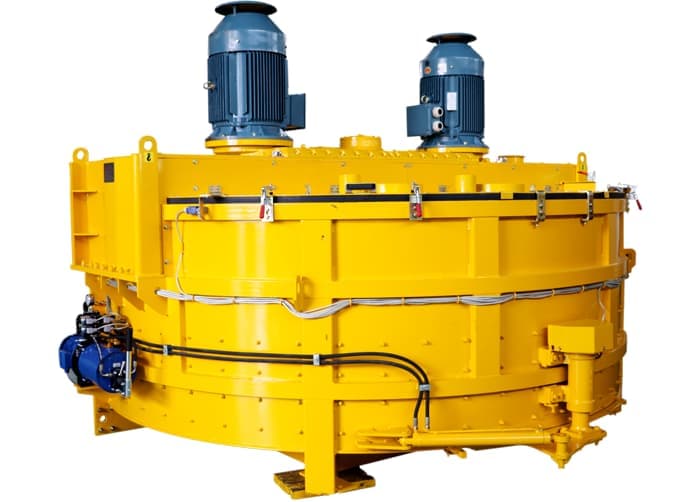

Planetary Concrete Mixers
Achieving the desired homogeneity and workability of modern within the shortest period possible, is often the most critical phase of production, therefore, the need for reliable, high quality mixing equipment is essential. A DKTEC with a DKTEC Planetary at its heart is a combination you can always rely on. DKTEC offers an extensive range of high performance – Single Shaft, Twin Shaft, and Planetary with variety of different capacities, ensuring we comply with every requirement. DKTEC Planetary have proven to be reliable and built to the highest quality, resulting in DKTEC equipment being the choice of many professionals, in over 70 countries around the world.
Planetary Concrete Mixers Advantages
1. SUPERIOR MIXING HOMOGENEITY

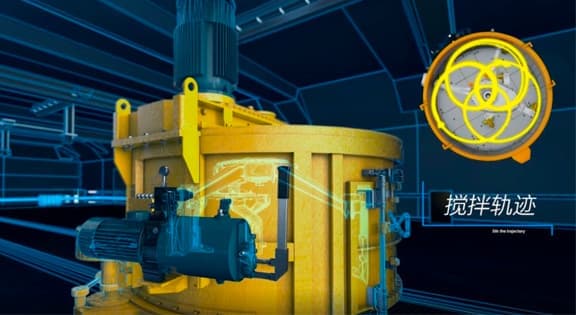

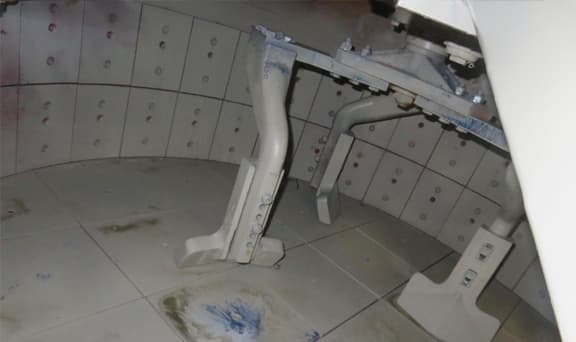

The advanced planetary mixing system creates intensive and multidirectional material movement, ensuring thorough and homogeneous mixing in a short cycle. Multiple mixing stars work throughout the entire mixing chamber to minimize dead zones and deliver consistent mix quality.

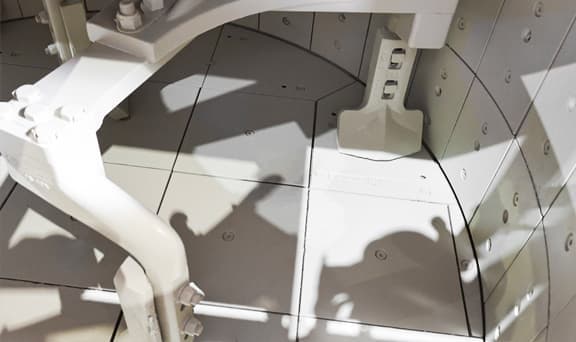

2. Wear Linings
SICOMA Twin Shaft Concrete Mixers are equipped with alloy cast wearing linings as standard, providing excellent abrasion resistance and extended service life in demanding concrete mixing applications.

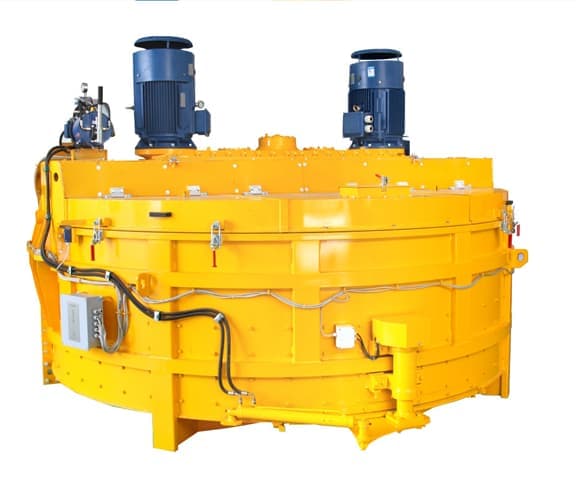

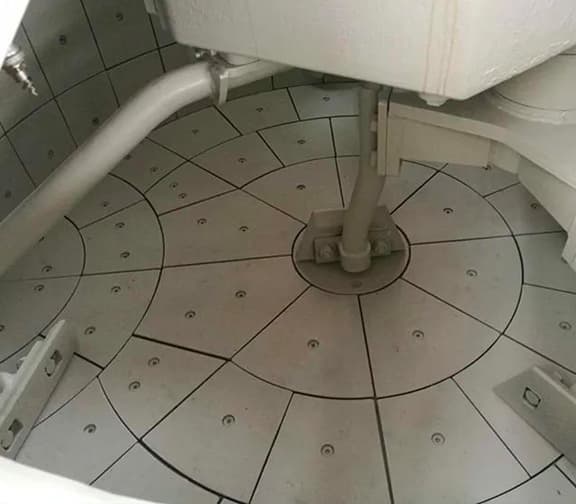

3. USING NI-HARD
SICOMA Mixers are equipped as standard with Ni-Hard cast iron liner plates and mixing blades, offering excellent abrasion resistance and long service life in demanding concrete mixing applications. With a minimum hardness of 530 HB, Ni-Hard effectively withstands continuous contact with aggregates and other abrasive materials, helping protect the mixer tank and maintain reliable mixing performance. Its consistent hardness provides stable and predictable wear throughout the service life of the wear components, while the actual service life depends on factors such as aggregate type and hardness, mix design, mixing cycle, and operating conditions. By reducing wear, maintenance frequency, and replacement requirements, Ni-Hard components help minimize downtime and lower the overall operating cost of the SICOMA Concrete Mixer.

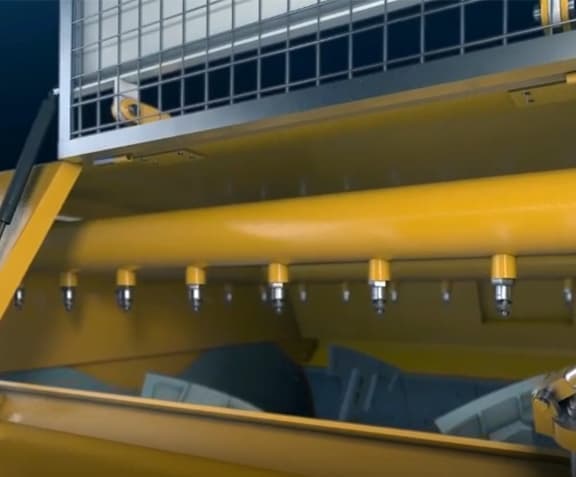

4. WATER DISTRIBUTION SYSTEM
We offer water distribution pipe with distribution nozzles working by gravity by default. Several discharge types and sprayers, gravity or pressurized are available upon request according to the application.

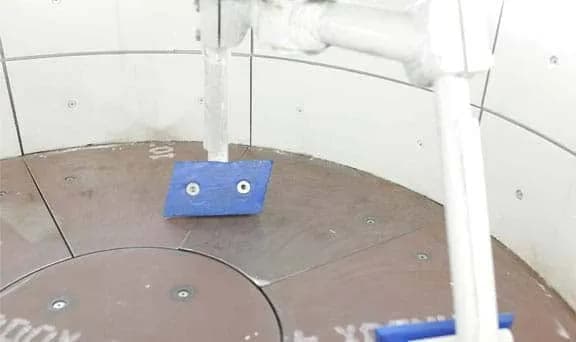

5. MIXER DISCHARGE GATE
Discharge gate is operated hydraulically. Position switches enable individual adjustments for controlling the flow of through the discharge gate.
6. HYDRAULIC DRIVE FOR DISCHARGE GATE
Discharge gate is driven by a hydraulic power pack, which ensures the full open and close. Manual operation with the help of a manual pump in case of an emergency is possible.

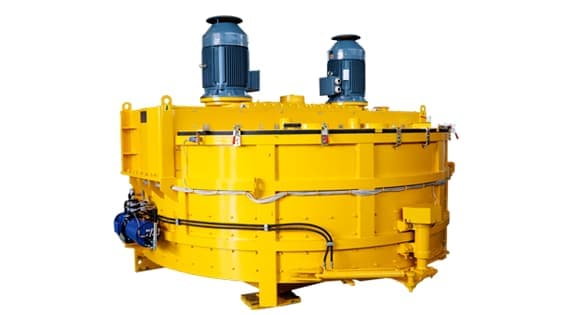

7. POWER PANEL
All DKTEC come pre-wired and connected to the junction power box.

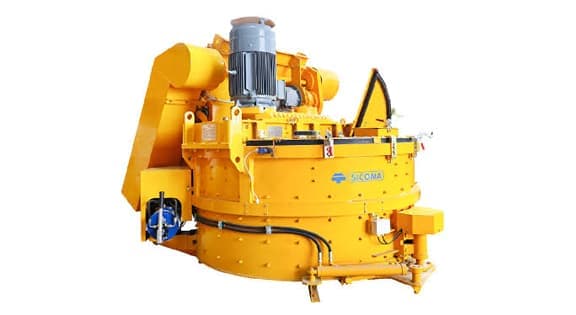

8. HYDRAULIC COUPLING
Our planetary are supplied with hydraulic couplings as a standard to ensure the soft starting of the mechanisms to lower the stress on mixing arms.
9. MAINTENANCE COVER
Wide maintenance hatch with safety switches for secure and easy access for maintenance are supplied as a standard.

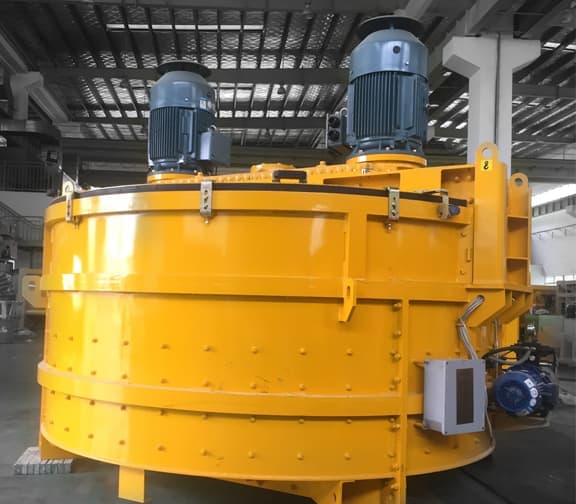

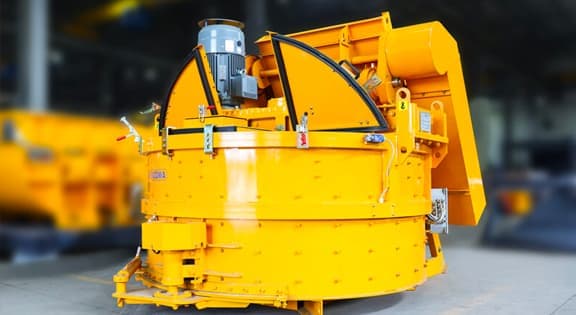

10. DRIVETRAIN TO LAST
High quality motors and gear-boxes from the best manufacturers with perfectly chosen RPM’s lower energy consumption and provide a long lasting service life of the
11. DISCHARGE CHUTE
A discharge chute can be supplied upon request with or without rubber chute.

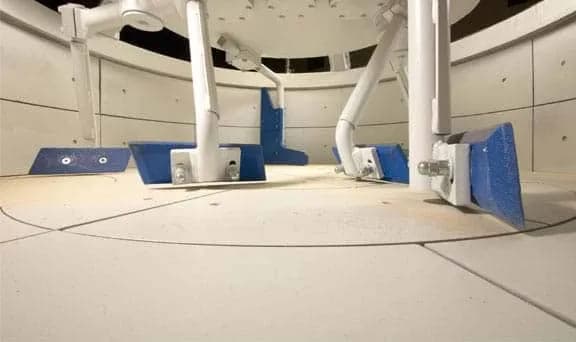

12. MIXER MOISTURE PROBE
A microwave moisture sensor reading at 25 times per second and combined with on-board functionality such as signal processing, smoothing and averaging accurately measures the moisture content of material as it passes over the ceramic faceplate

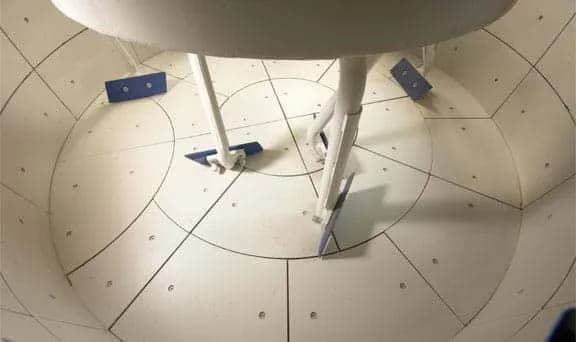

13. MIXER TEMPERATURE SENSOR
No matter what is the season, cold or hot, the purpose of this sensor is to ensure that the temperature of the mix is within acceptable levels.
14. SAFETY POWER TAKE-OFF KIT
For the safety of working environment we offer a wide range of safety power take-off kits for and other parts of.

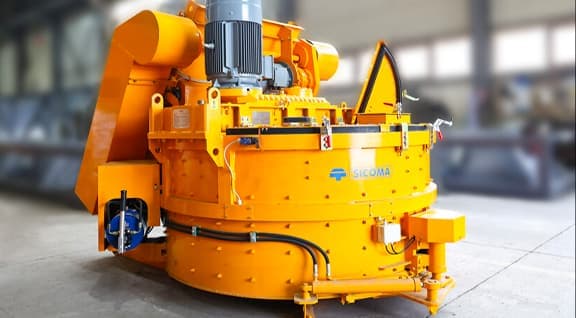

15. AUTOMATIC HIGH-PRESSURE WASHOUT SYSTEM
An optional washout system with a 100-bar water pump and two rotating heads (10 nozzles) can be supplied upon request.

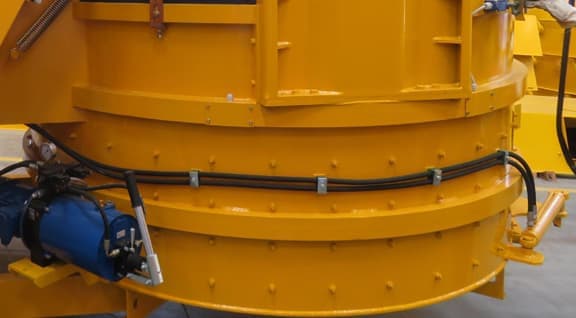

16. PRESSURIZED WATER DISTRIBUTION
According to the application we can offer a low pressure water spray system for water discharge and special distribution nozzles.

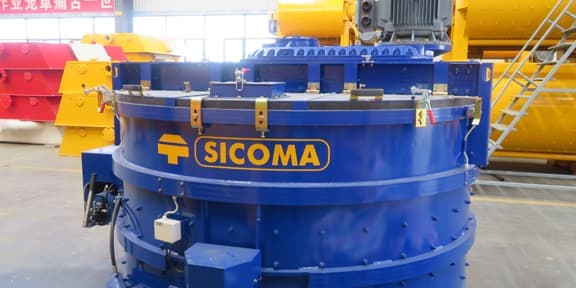

17. MIXER TOP FILTER
A separate filter or dust bag for can be supplied upon request.

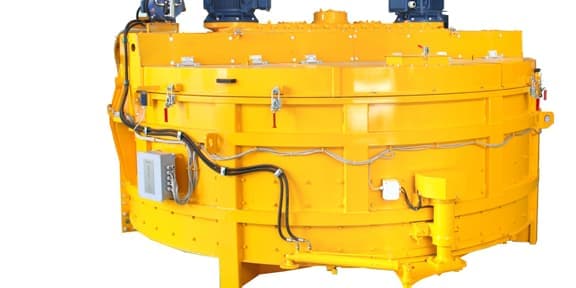

18. TWIN-DISCHARGE
Two-way discharge with second discharge gate can be supplied as an option to maximize the capacity of the plant and to ease the operation.

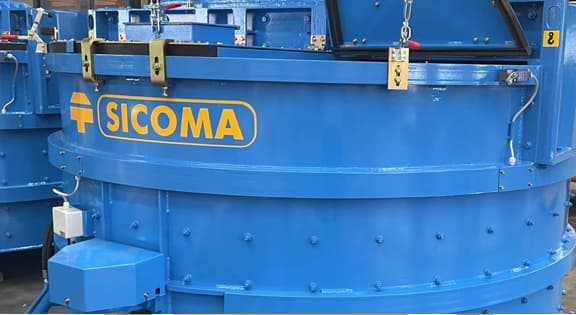

19. SPECIAL APPLICATIONS
The design of the can be changed or improved according to special applications like precast , low slump and others.
20. SWIVEL DISCHARGE CHUTE
We can offer a swivel discharge chute to protect the trucks from leak on drive through layouts.

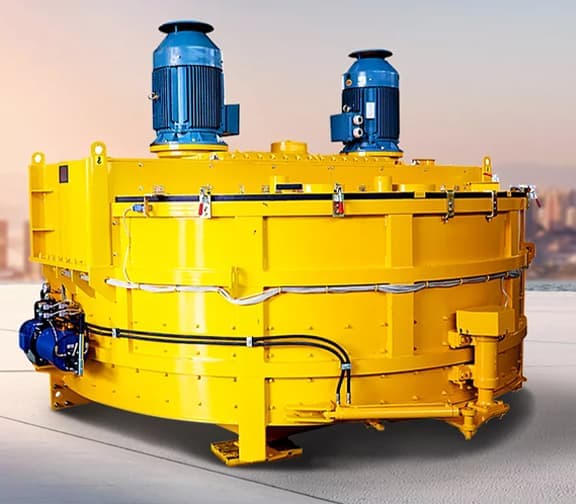

21. WIDE AFTER-SALES NETWORK
We are always around to support our equipment with our regional offices, dealers and spare part warehouses worldwide.

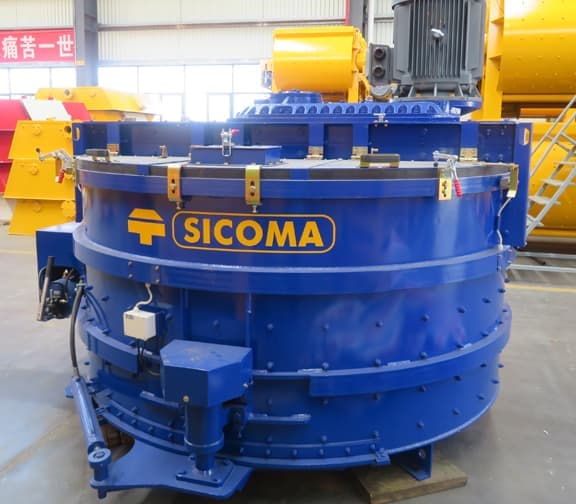

22. A RELIABLE PARTNER
Many of the World’s leading professional contractors, construction companies and cement manufacturers, prefer DKTEC. DKTEC has become a leading supplier for a number of major projects around the world and has proven to be an industry leader in the Turnkey supply and manufacture of high quality and reliable production equipment.

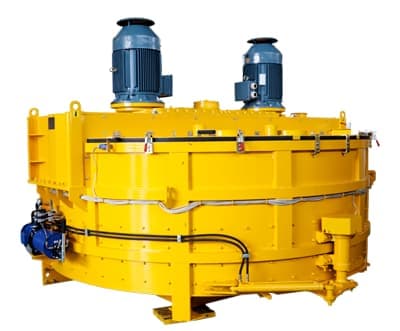

23. APPROVED QUALITY
All DKTEC products and manufacturing processes are compliant with the quality requirements of ISO 9001, CE norms, EAC standards and other specific quality and safety based directives.

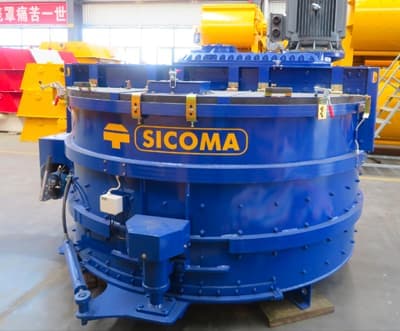

24. HIGH PRECISION MACHINERY
The use of technologically advanced CNC boring equipment ensures all DKTEC structures are perfectly aligned to ensure the parallelism of the mixing shafts.
25. 3D SOLID MODELLING AND TESTING
All DKTEC products are designed and tested in parametric 3-dimensional space prior to manufacture, to eliminate any potential faults.
26. PERFECT WATER DISTRIBUTION
Water distribution pipes allow perfect water distribution within the to ensure fast and homogeneous mixing in less than 30 seconds.

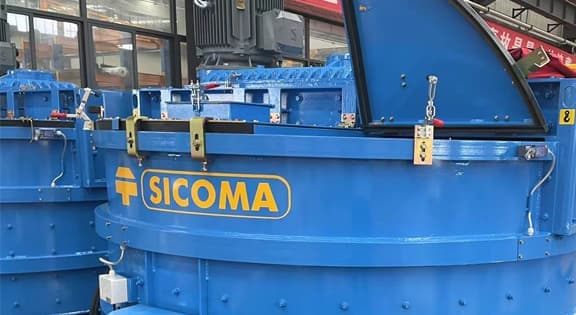

27. PROJECT SUPPORT
Not sure, if our equipment fits? Let us offer you a complete solution. Our project team will be happy to create unique solutions for different applications.
28. DRIVETRAIN TO LAST
High quality motors and gear-boxes from the best manufacturers with perfectly chosen RPM’s, to lower energy consumption and provide a long lasting service life of our

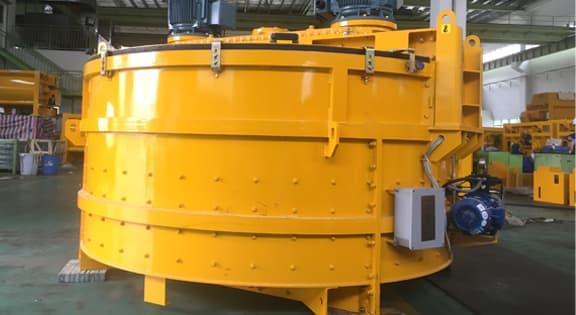

29. WIDE RANGE
With a wide range of different types of and capacities, we have a solution for every application.
Planetary Concrete Mixers Technical Specifications
MPC Planetary Mixer
| Model | MPC565/375 | MPC750/500 | MPC1125/750 | MPC1500/1000 | MPC1875/1250 | MPC2250/1500 | MPC3000/2000 | MPC4500/3000 |
|---|---|---|---|---|---|---|---|---|
| Compacted Yield (L) | 375 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 3000 |
| Mixing Motor & Power (kW) | 15 | 22 | 37 | 45 | 45(55) | 2×37 | 2×45(55) | 3×45(55) |
| Number Of Long Revolution Arms (PCS) | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 3 |
| Number Of Short Revolution Arms (PCS) | 0 | 1 | 1 | 1 | 1 | 1 | 1 | 0 |
| Number Of Rotation Mixing Arms (PCS) | 3 | 3 | 3 | 3 | 6 | 6 | 6 | 9 |
| Number Of Rotation Scrapers (PCS) | 3 | 4 | 4 | 4 | 4 | 4 | 8 | 9 |
| Number Of Rotation Scrapers (PCS) | 3 | 3 | 3 | 3 | 3+3 | 3+3 | 3+3 | 3+3+3 |
| Weight At Empty (T) | 1.4 | 2.4 | 3 | 4 | 5 | 6.3 | 8.5 | 16 |
