Commercial Concrete Batching Plants
DKTEC Commercial Concrete Batching Plants are designed for high-volume, continuous ready-mix concrete production. Five capacities from 120 to 300 m³/h combine powerful twin-shaft mixing, precise weighing, intelligent automation, efficient material flow, and durable modular structures for commercial suppliers and major infrastructure projects.
DKTEC Commercial Concrete Batching Plant Models

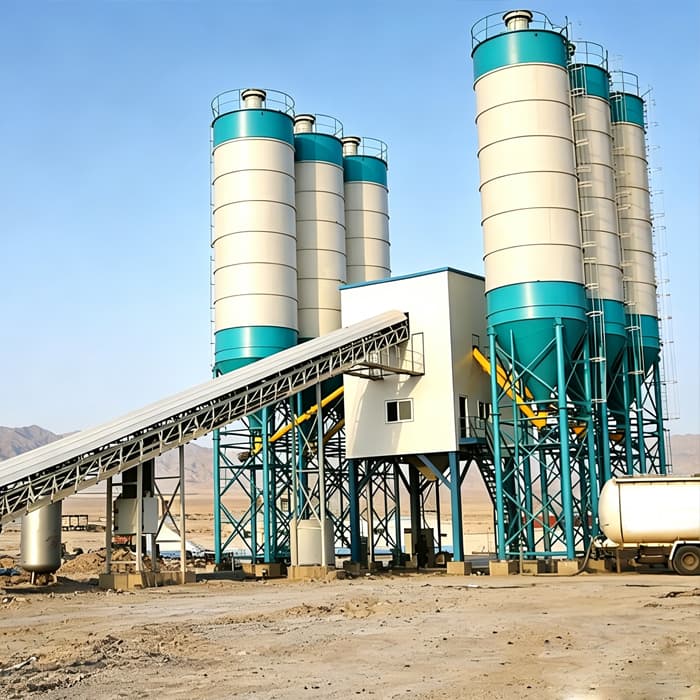

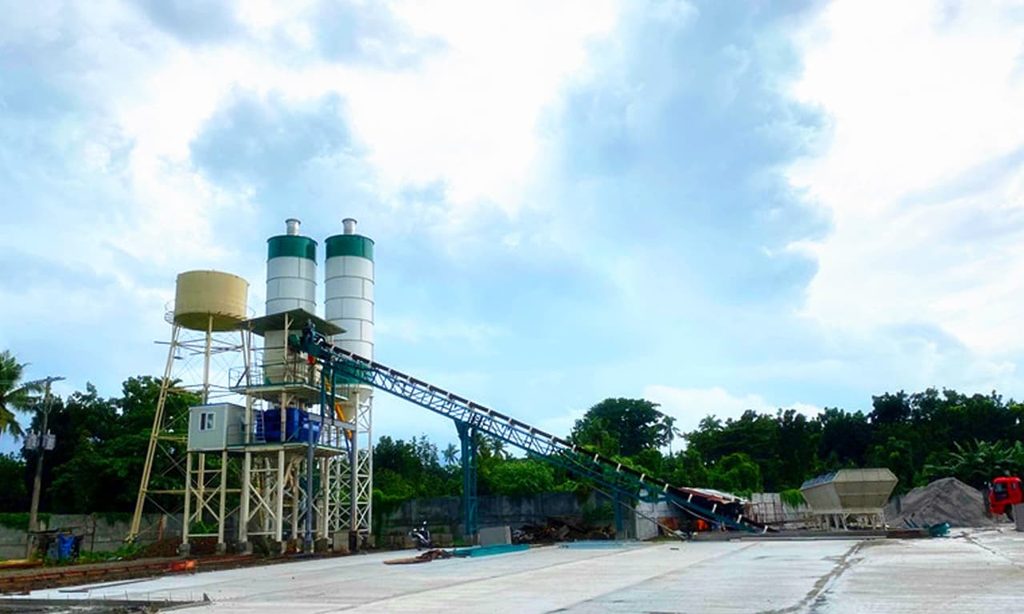

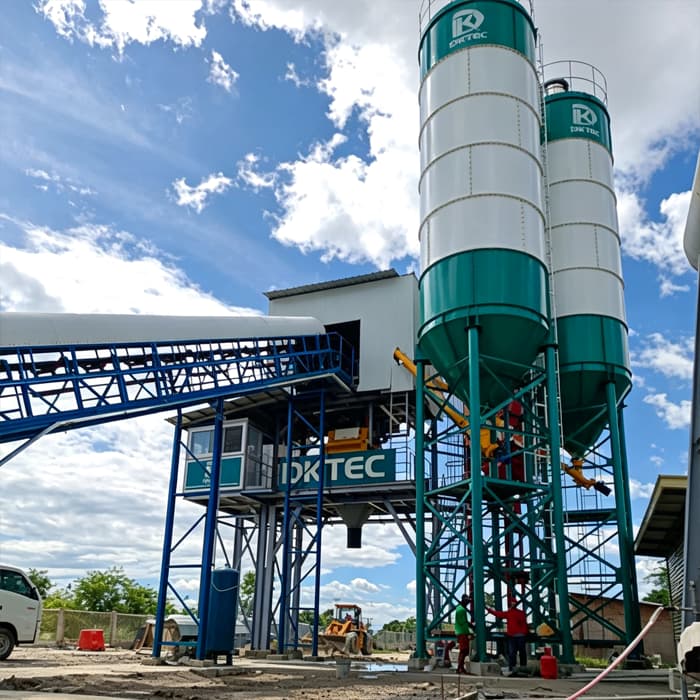

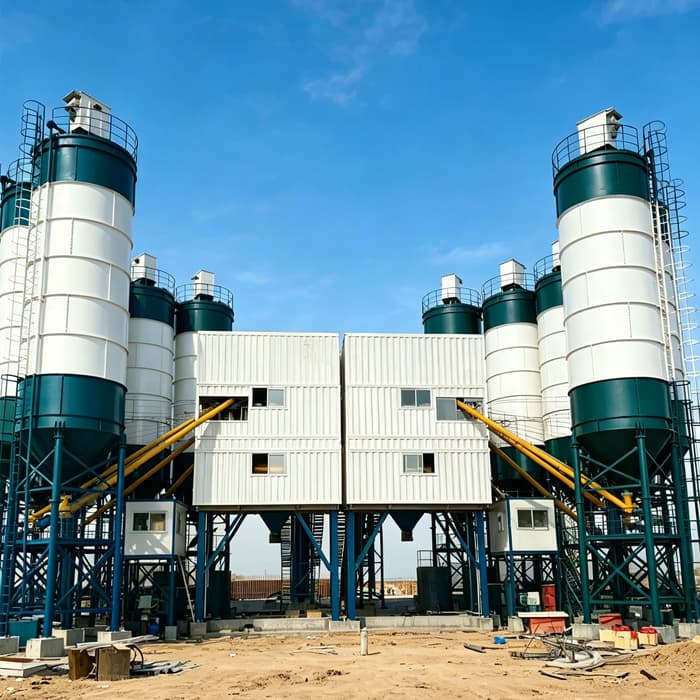

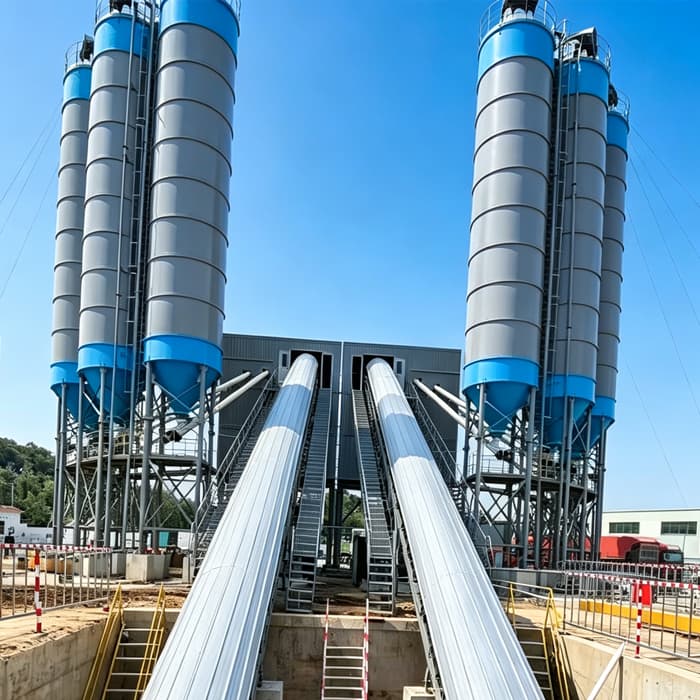

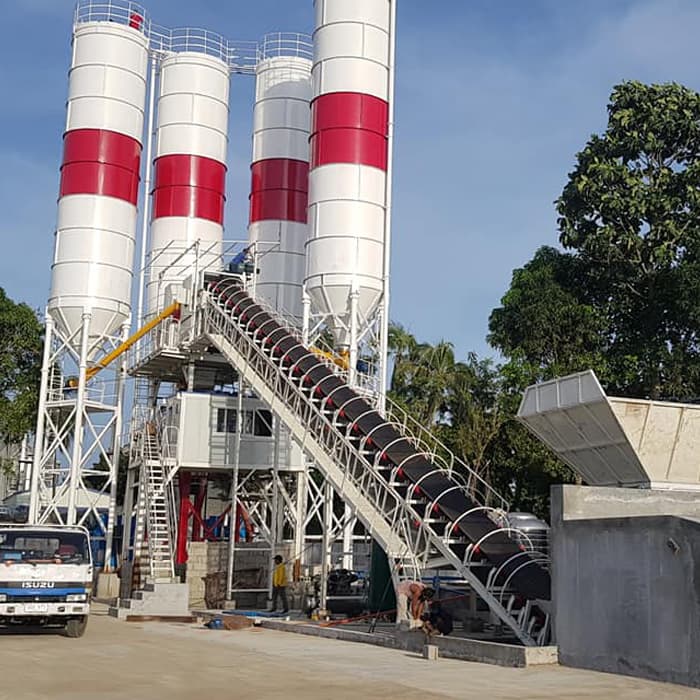

| Model | HZS120 | HZS180 | HZS240 | HZS270 | HZS300 |
|---|---|---|---|---|---|
| Theoretical Productivity | 120 m³/h | 180 m³/h | 240 m³/h | 270 m³/h | 300 m³/h |
| Installed Capacity | 210 kW | 250 kW | 280 kW | 350 kW | 350 kW |
| Nominal Capacity | 2000 L | 3000 L | 4000 L | 4500 L | 5000 L |
| Unloading Height | ≥3.8 m | ≥3.8 m | ≥3.8 m | ≥3.8 m | ≥3.8 m |
| Sandstone Measuring Range And Accuracy | (600-2000)kg ±2% | (900-3000)kg ±2% | (900-4500)kg ±2% | (900-5000)kg ±2% | (900-5000)kg ±2% |
| Cement Measuring Range And Accuracy | (200-1200)kg ±1% | (300-1800)kg ±1% | (400-2500)kg ±1% | (400-2600)kg ±1% | (400-2600)kg ±1% |
| Mixing Powder Measuring Range And Accuracy | (200-800)kg ±1% | (200-1000)kg ±1% | (200-1200)kg ±1% | (300-1800)kg ±1% | (300-1800)kg ±1% |
| Water Measuring Range And Accuracy | (150-500)kg ±1% | (200-800)kg ±1% | (200-1000)kg ±1% | (200-1200)kg ±1% | (200-1200)kg ±1% |
| Additive Measuring Range And Accuracy | (15-50)kg ±1% | (15-80)kg ±1% | (15-80)kg ±1% | (20-100)kg ±1% | (20-100)kg ±1% |
From Experience to Perfection
Since 2015, DKTEC has been involved in the design, manufacture, and installation of stationary and portable aggregate processing plants and concrete batching plants throughout more than 90 countries.
Learn more about us by watching the DKTEC video.
Let us solve all your feeder needs!
How much do apron feeders cost?
Can I get a price quote?
Can I become a dealer for your equipment?
May I learn about your feeding equipment references in the US?
How long does it take to deliver a wobbler feeder?
How can we calculate feeder capacity?
And all your questions…
Let’s move on to the next level. Contact us now by filling out the form.
